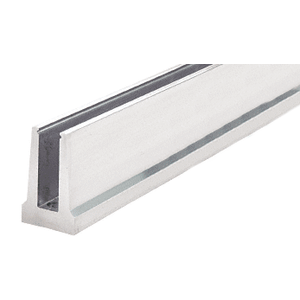

CRL  Mill Aluminum Tapered Base Shoe Drilled With Hole Pattern D in a 10' Length
Qty
+
$561.20   /each

CRL B5T10D6 Mill Aluminum Tapered Base Shoe Drilled With Hole Pattern D in a 10' Length

  • For 1/2" (12 mm) Monolithic Tempered Glass
  • Works with TL5X10 TAPER-LOC®'X' Taper S
  • Typically Used as the Base Channel for Glass Railing Systems Requiring a Flush Installation Embedded in Concrete
  • Drilled and Counter Bored 6" (152 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
  • Custom Cutting and Mitering Service
  • Test Reports Available
See Full Product Description
SALE

$561.20 /each

Qty

In stock
Special Order

Usually ships in 1-2 weeks*

SALE
+
In stock Special Order

Usually ships in 1-2 weeks*

Have a Question?

Chat with our Expert


Description

  • For 1/2" (12 mm) Monolithic Tempered Glass
  • Works with TL5X10 TAPER-LOC®'X' Taper S
  • Typically Used as the Base Channel for Glass Railing Systems Requiring a Flush Installation Embedded in Concrete
  • Drilled and Counter Bored 6" (152 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
  • Custom Cutting and Mitering Service
  • Test Reports Available

  • Product Description
  • Technical Details 12
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Center to Center Hole Spacing

6" (152 mm)

Counter Bore and Depth

7/8 x 1/2 in (22.2 x 12.7 mm)

Minimum Order

1 Each

Counter Bore X Depth

7/8" (22 mm) x 1/2" (12.7 mm)

Stock Length

120" (3.05 m)

Hole Size

9/16" (14.3 mm)

Holes Drilled C.T.C.

6" (152 mm)

Height with Casters

81" (2.06 m)

Finish

Mill

  • For 1/2" (12 mm) Monolithic Tempered Glass
  • Works with TL5X10 TAPER-LOC®'X' Taper S
  • Typically Used as the Base Channel for Glass Railing Systems Requiring a Flush Installation Embedded in Concrete
  • Drilled and Counter Bored 6" (152 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
  • Custom Cutting and Mitering Service
  • Test Reports Available
The CRL B5T Tapered Base Shoe is typically used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
GLASS SPECIFICATIONS:
1/2" (12 mm) Thick Glass when using TAPER-LOC® Dry Glaze System; 1/2" (12 mm) to 5/8" (16 mm) Thick Glass when using Wet Glaze System. Important Notes: CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method. All pre-drilled CRL Base Shoes have a +1/8 (3mm) / -1/16 (1.5mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
