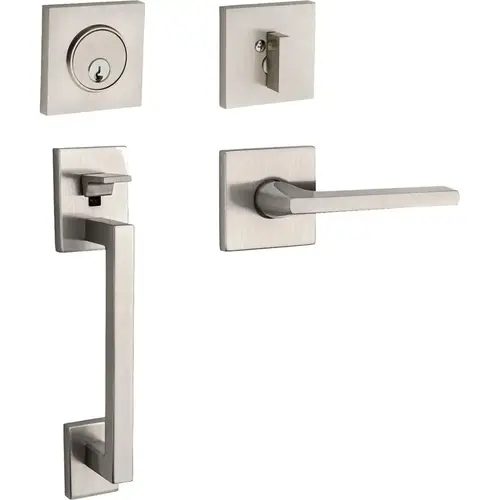

Baldwin 85390056RENT 85390.056.RENT Minneapolis Sectional Handleset with 5162 Lever - Satin Nickel
Item #: 85390056RENT by Baldwin
UPC #: 884011851949
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Minneapolis Sectional Handleset
- Single Cylinder
- Polished And Finished By Hand
- Solid Forged Brass
- Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty
28 Degree Latch
No
ADA
No
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Round Corner
Center to Center
5.5
Collection
Minneapolis
Concealed Screws
No
Configuration
Handleset
Cross Bore
2-1/8"
Cylinder
5 Pin C
Deadbolt Included
Yes
Door Thickness
1-3/4"
Edge Bore
1"
Function
Single Cylinder
Grip Center to Center
8
Handing
RH
Handle Design
5162
Handle Material
Metal
Handle Style
Minneapolis
Height
11.28125
Interconnected
No
Interior Handle Style
Lever
Keyway
SC1 5-Pin Pin & Tumbler
Latch Faceplate
Square Corner
Lever Length
4.46875
Lock Style
Single Point
Manufacturer Warranty
Limited Lifetime Mechanical, 5 Year Finish
Material
Brass
Mount
Sectional
Panic Proof
No
Product Class
Residential
Product Weight
6.8
Projection
2.71875
Width
2.625
Theme
Modern
Style
Contemporary/Modern
Solid Construction
Solid Brass
Series
85300 Series
Strike
RCS-Round Corner Strike
Cylinder Type
Conventional Cylinder
Finish Description
Satin Nickel
Lever Style
5162-Straight
Keyblank Grouping
BALD-SCHL-C-5-1
Rose/Escutcheon Trim
Square-Sectional Escutcheon
Product Type
Handleset
Finish
Satin Nickel
Grade
ANSI/BHMA Grade 2
Keying Charges
Residential-Conventional
Application
Standard Pre-Bored Wood or Metal Doors; Residential
Hand
Right Hand
Warranty
Lifetime Limited Mechanical/Finish
Color Code
056
Product Height
11-29/32" (Lower half); 2-5/8" (Deadbolt)
Product Length
2-5/8" (Lower half); 2-5/8" (Deadbolt)
ADA Compliant
No
Finish Family
Satin Nickel
Door Cross Bore
2.125 Inch
Product Material
Solid Forged Brass
Standards
ANSI/BHMA
Function Family
Single Cylinder Handleset
Features
Furnished With a High Grade Steel Strike for Ultimate Strength and Durability; Designed for Easy Installation in Standard Pre-Bored Wood or Metal Doors
Manufacturer Parent
Spectrum
Sub-Series
RL_Handlesets_baldwin_103
Package Height
5"
Package Length
25"
Package Width
6"
Item Weight
9.2 lbs
Dimension
11-29/32" x 2-5/8" with 2-23/32" Projection Handleset and 2-5/8" x 2-5/8" with 17/32" Projection Deadbolt
Rose/Escutcheon Design
R017 Rose
Door Range
1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4" and 1-1/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
056
Design
Minneapolis
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
5162 Lever
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
Minneapolis Sectional Right Hand Single Cylinder Entry Tubular Handleset with 5162 Lever Lifetime Satin Nickel Finish
