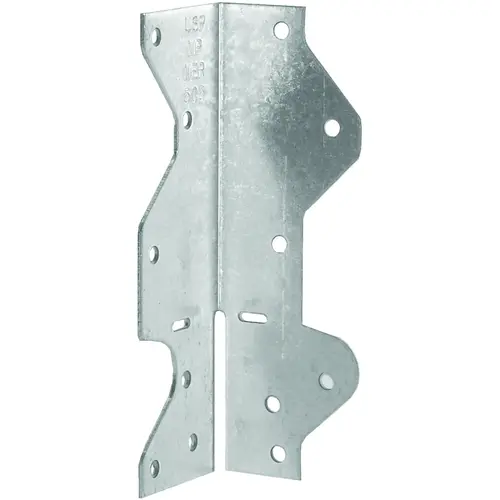

Multi-Purpose Framing Angle, 1-1/2 in W, 1-7/16 in D, 4-1/2 in H, Steel, G90 Galvanized - pack of 100

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

MiTek MPA1-XCP100 Multi-Purpose Framing Angle, 1-1/2 in W, 1-7/16 in D, 4-1/2 in H, Steel, G90 Galvanized - pack of 100

Item #: MPA1-XCP100 by MITEK USA INC

Brand: MiTek

See reviewsSee reviews
See reviews summary
In Stock

$111.73

/package
SAVE UP TO 11.17
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available

Pack: pack of 100

pack of 100
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Field adjustable from 45 to 180 deg

Returnable

Yes

Side 1 Height

4.5"

Defective Code

C

Width

1-1/2"

Number in Package

1 pk

Length

1.5"

Gauge

18 Ga.

Product Type

Framing Angle

Material

Steel

Each Weight

0.140 LB

Velocity

A

Hazardous Material

No

Height

6.64"

Finish

G90 Galvanized

Weight Capacity

280 lb

Depth

1-7/16"

Nomenclature

MPA1 UNIV FRAMING ANGLE4-5/8

Fastener Type

Nail

Weight (lb)

90.00

Size (W x H x D)

4.45×1.45×1.50

Product Overview
FRAME ANGLE MULTI-PURPOSE STL

Use for joist to header, rafter to plate, stud to plate or 1 in foam board installations. Achieves continuous load path in high wind and seismic resistant construction. Enables quick field adjustments for 2 and 3-way connections. Tabs enable two and three-way connections. Bend tabs only once. Requires 8d x 1-1/2 nails. Meets SBCCI, BOCA - NER 505, ICBO 5736, DSA PA-076, Dade County, FL 01-417.11 and L.A. City RR25303 codes. For additional information including allowable loads and number of fasteners, Please See USP Lumber Connectors charts in the Orgill paper catalog R7 Reference Pages.
