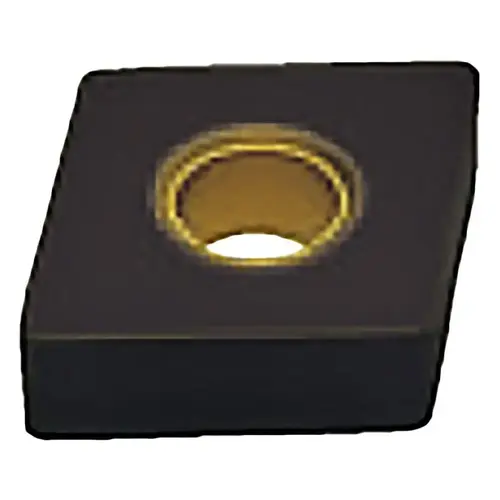

Mitsubishi 100694 Turning Insert: CNMA431 HTI10, Solid Carbide Bright/Uncoated

Item #: 100694 by Mitsubishi Electric

See reviewsSee reviews
See reviews summary
In Stock

$11.99

/each
SAVE UP TO 1.20
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

CNMA

Side Clearance

Negative

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0160

Manufacturers Catalog Number

CNMA431

Material Grade

N10

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

Uncoated

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1870

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1692

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Full Radius

No

Insert Shape Code

C

Chip Breaker

Flat Top

Secondary Workpiece Material Code

K

Insert Style

CNMA

Insert Size Code

431

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Manufacturer Grade

HTi10

ISO Size Code

120404

Grade Characteristics

Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

431

ISO Insert Code

CNMA120404

Proprietary Coating Designation

Uncoated

Iso Code

CNMA120404

ANSI Insert Code

CNMA431

Product Overview
Turning Insert: CNMA431 HTI10, Solid Carbide 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond
