Turning Insert: CNMG 432GH UC5115, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Mitsubishi 290407 Turning Insert: CNMG 432GH UC5115, Solid Carbide TiCN

Item #: 290407 by Mitsubishi Electric

See reviewsSee reviews
See reviews summary

$18.46

/each
SAVE UP TO 1.85
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

CNMG

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0310

Manufacturers Catalog Number

CNMG432GH

Material Grade

K05

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1870

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1692

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Full Radius

No

Insert Shape Code

C

Chip Breaker

GH

Secondary Workpiece Material Code

P

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Chip Breaker Operation

Roughing

Manufacturer Grade

UC5115

ISO Size Code

120408

Grade Characteristics

Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.5000 - 0.6000

ANSI Size Code

432

ISO Insert Code

CNMG120408

Proprietary Coating Designation

Multilayer Coating

Iso Code

CNMG120408-GH

ANSI Insert Code

CNMG432

Product Overview

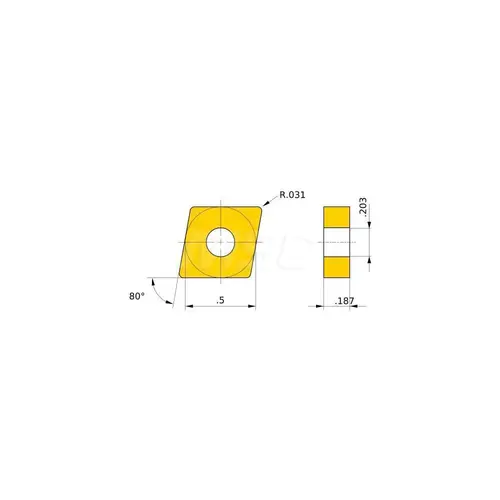

Turning Insert: CNMG 432GH UC5115, Solid Carbide Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CNMG
