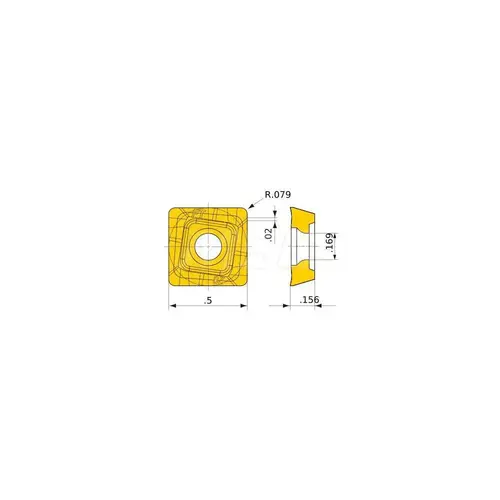

Mitsubishi 315256 Milling Insert: SOMT12T320PEER-FT, VP15TF, Solid Carbide AlTiN
Item #: 315256 by Mitsubishi Electric
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material Application
Cast Iron
Length (mm)
12.70
ANSI Code
SOMT12T320PEER-FT
Standards
ISO
Thickness (mm)
3.96
Insert Material
Solid Carbide
Series
SOMT
Coating Process
PVD
Coating/Finish
AlTiN
Corner Radius (Decimal Inch)
0.0790
Length (Decimal Inch - 4 Decimals)
0.5000
Length (Inch)
1/2
Manufacturers Catalog Number
SOMT12T320PEER-FT
Primary Workpiece Material
Cast Iron
Primary Workpiece Material Code
K
Thickness (Decimal Inch - 4 Decimals)
0.1560
Thickness (Inch)
5/32
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5000
Width (Inch)
1/2
Width (mm - 2 Decimals)
12.70
Coating Classification
PVD
Insert Holding Method
Screw
Multi-use Tool
No
Rake
Positive
Secondary Workpiece Material
Superalloys & Titanium
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.5000
Corner Radius (Inch)
5/64
Insert Shape
Square
Chip Breaker
FT
Secondary Workpiece Material Code
H
Insert Style
SOMT
Insert Size Code
12T320
Hole Diameter (Decimal Inch)
0.1689
Inscribed Circle (Inch)
1/2
Hole Diameter (Mm) ( - 0 Decimals)
0.17
Manufacturer Grade
VP15TF
Single or Double Sided Insert
Single
Inscribed Circle (mm)
12.70
Corner Radius (mm)
2.01
Iso Code
SOMT12T320PEER-FT
Product Overview
Milling Insert: SOMT12T320PEER-FT, VP15TF, Solid Carbide Coated, 0.156" Thick
