Turning Inserts; ANSI Insert Code: CNMG542 ; ISO Insert Code: CNMG160608 ; Relief Angle: 0 ; Insert Style: CNMG ; Corner Radius (mm): 0.80 ; Corner Radius (Inch): 1/32 CVD

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

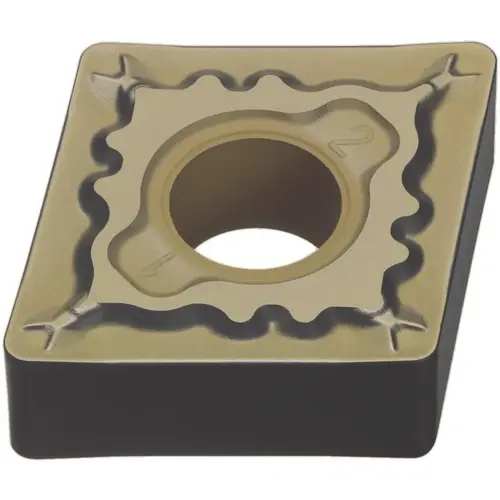

Mitsubishi 618530 Turning Inserts; ANSI Insert Code: CNMG542 ; ISO Insert Code: CNMG160608 ; Relief Angle: 0 ; Insert Style: CNMG ; Corner Radius (mm): 0.80 ; Corner Radius (Inch): 1/32 CVD

Item #: 618530 by Mitsubishi Electric

See reviewsSee reviews
See reviews summary
In Stock

$30.70

/each
SAVE UP TO 3.07
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

4

Insert Thickness

6.35

Included Angle

80

Insert Material

Carbide

Side Clearance

Negative

Coating/Finish

CVD

Corner Radius (Decimal Inch)

0.0312

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.6250

Corner Radius (Inch)

1/32

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Insert Shape Code

C

Chip Breaker

MP

Insert Style

CNMG

Insert Size Code

5

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

5/8

Chip Breaker Operation

Medium Machining

Manufacturer Grade

MC6025

ISO Size Code

160608

Grade Characteristics

Steel (P) - High Wear-Resistance to High Toughness

ANSI Size Code

542

Inscribed Circle (mm)

15.88

ISO Insert Code

CNMG160608

Corner Radius (mm)

0.80

ANSI Insert Code

CNMG542

Product Overview
Turning Inserts; ANSI Insert Code: CNMG542 ; ISO Insert Code: CNMG160608 ; Relief Angle: 0 ; Insert Style: CNMG ; Corner Radius (mm): 0.80 ; Corner Radius (Inch): 1/32
