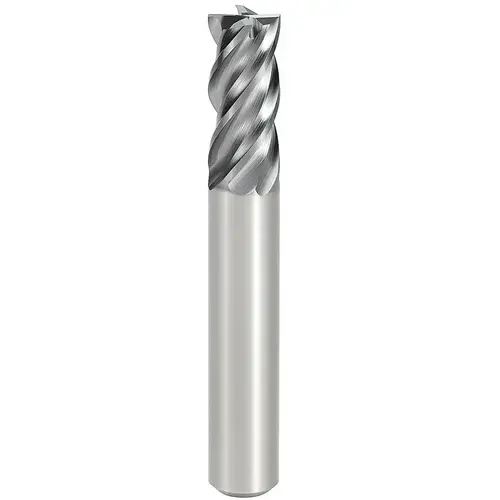

Mitsubishi 621430 Square End Mill: 3.00 mm Dia, 8.0000 mm LOC, 4 Flute, Solid Carbide AlCrN
Item #: 621430 by Mitsubishi Electric
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Helical
Shank Type
Straight
Overall Length (mm)
45.00
Helix Angle
37-40
Number of Flutes
4
Chipbreaker
No
Length Type
Medium
Cutting Direction
Right Hand
Series
VQ Endmill VQMHV
System of Measurement
Metric
Variable Helix
Yes
Coating/Finish
AlCrN
Coolant Through
No
Length of Cut (Decimal Inch)
0.3150
Material Grade
Carbide
Overall Length (Decimal Inch)
1.7717
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.2362
Shank Diameter (mm)
6.00
UNSPSC Code
27112803
Vendor Drop Ship
N
Centercutting
No
Coating/Finish Family
AlCrN
End Mill Material
Solid Carbide
Extended Reach
No
Flute Direction
Right Hand
Mill Diameter (Decimal Inch)
0.1181
Neck Length (Decimal Inch)
0.3150
Secondary Workpiece Material
Aluminum & Non-Ferrous
Single Or Double End
Single
Variable Index
Yes
Length of Cut (mm)
8.00
Secondary Workpiece Material Code
N
Mill Diameter Tolerance
-0.020
Mill Diameter (mm)
3.00
Neck Length (mm)
8.00
Shank Diameter Tolerance
h6
Product Overview
Square End Mill: 3.00 mm Dia, 8.0000 mm LOC, 4 Flute, Solid Carbide 45.0000 mm OAL, 6.0000 mm Shank Dia, 40 deg Helix, Variable Helix AlCrN Coated, Square End
