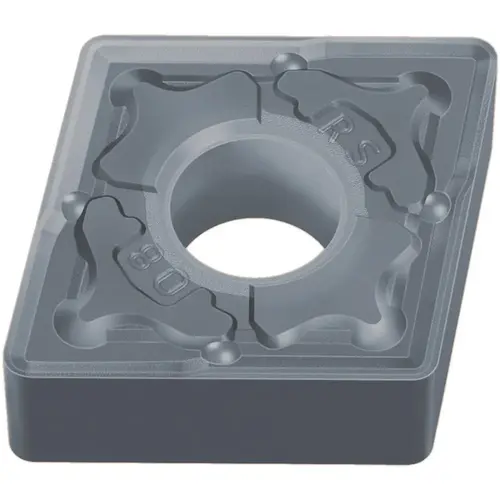

Turning Inserts; ANSI Insert Code: CNMG543 ; ISO Insert Code: CNMG160612 ; Relief Angle: 0 ; Insert Style: CNMG ; Corner Radius (mm): 1.20 ; Corner Radius (Inch): 3/64 - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Mitsubishi 814602-XCP10 Turning Inserts; ANSI Insert Code: CNMG543 ; ISO Insert Code: CNMG160612 ; Relief Angle: 0 ; Insert Style: CNMG ; Corner Radius (mm): 1.20 ; Corner Radius (Inch): 3/64 - pack of 10

Item #: 814602-XCP10 by Mitsubishi Electric

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$295.58

/package
SAVE UP TO 29.56
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 65 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

4

Insert Thickness

6.35

Included Angle

80

Insert Material

Carbide

Side Clearance

Negative

Coating/Finish

PVD

Corner Radius (Decimal Inch)

0.0469

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.6250

Corner Radius (Inch)

3/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Insert Shape Code

C

Chip Breaker

RS

Insert Style

CNMG

Insert Size Code

5

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

5/8

Chip Breaker Operation

Roughing

Manufacturer Grade

MP9015

ISO Size Code

160612

Grade Characteristics

Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

ANSI Size Code

543

Inscribed Circle (mm)

15.88

ISO Insert Code

CNMG160612

Corner Radius (mm)

1.20

ANSI Insert Code

CNMG543

Product Overview
Turning Inserts; ANSI Insert Code: CNMG543 ; ISO Insert Code: CNMG160612 ; Relief Angle: 0 ; Insert Style: CNMG ; Corner Radius (mm): 1.20 ; Corner Radius (Inch): 3/64
