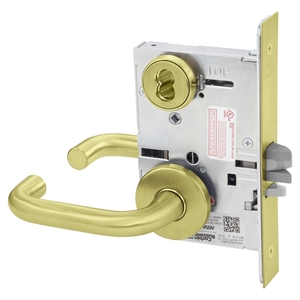

Corbin Russwin ML2052 LWA 606 CL7 Mortise Lock Satin Brass

1 reviews

$677.87 /each

Item #: ML2052 LWA 606 CL7 by Corbin Russwin

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

Corbin Russwin ML2052 LWA 606 CL7 Mortise Lock Satin Brass

1 1 reviews

$677.87 /each

Item #: ML2052 LWA 606 CL7 by Corbin Russwin

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist
Buy In Bulk

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

  • Handing Handed; quick reversible. The lockset can be re-handed without disassembling the lock case;
  • Door Thickness 1-3/4" (44mm) standard. Optional door thicknesses available
  • Backset 2-3/4" (70mm).
  • Lockcase Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance
  • Front Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
  • Armored Front Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
  • Latchbolt 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
  • Keys Two nickel silver standard.
  • Federal Meets FF-H-106C.
  • Environmental Product Declaration (EPD) certified

Thickness

1-3/4"

Strike Number

236L72018

Color

Satin Brass

Function

52-Classroom Intruder

ANSI Function

F32 - Classroom Security

Case Qty

6

Hand

Field Reversible

Grade

Grade 1

Fire Rated

3 Hours {A}

Special Marks

Full size/large format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines

Strike Width

1-1/4"

ADA Compliance

Yes

Cylinder Type

Corbin Russwin 7-Pin LFIC Less Core

Lock Face Size

8" x 1-1/4"

Application

Complete Lock

Package Qty

1

Screws

Combination

Bolt Protection

3/4" Latchbolt

Color Code

606/US4

Strike Type

ASA

Origin

USA

BAA Qualified

Yes

Rose/Escutcheon Design

A - Rose

Strike Height

4-7/8"

Lever/Knob Design

LW - Lustra

Classroom Intruder Mortise Lock, LW Lever, A Rose, 7-Pin LFIC Less Core, Satin Brass

The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.

The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.

The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
