30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from solid brass, this mortise bolt provides a traditional aesthetic and is finished in a brushed chrome coating.
- The bolt measures 3" in length with a 7/8" projection and an overall dimension of 3" x 1-3/4" for standard door applications.
- Designed for mortise installation, this bolt is suitable for light doors, screen doors, lavatory doors, and cabinet applications.
- Features a 1-3/4" backset and a 7/16" bolt throw, providing the necessary reach for effective door securing in light doors.
- The strike plate is corrosion resistant, ensuring consistent functionality and operation in various environmental conditions.
- This traditional style bolt is designed to maintain the aesthetic of interior decor schemes while providing a flush installation.
- Includes a limited 1-year mechanical and 1-year finish warranty, covering the hardware components for added support and use.
Size
7/8" Projection
Finish
US26D
Backset
1-3/4"
Bolt Throw
7/16"
Material
Solid Brass
Length
3
Box Qty
15 pc
Projection
7/8
Function
Mortise Bolt
Other Specifications
Backset: 1-3/4" Bolt Throw: 7/16"
Style
Traditional
Product Type
Mortise Bolt
Pack Size
1
Series
Bolts
Dimension
3" x 1-3/4" Overall
No of inners
1
Finish code
US26D
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Hazardous Material
No
Mounting Method
Mortise
Product Material
Brass
Substrate Type
Brass
Lock Type
Mortise
Map Policy
Yes
Product Overview

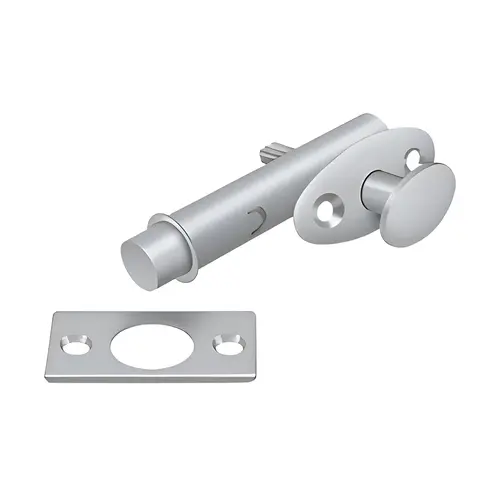

The MB175 Mortise Bolt is a traditional hardware component designed for securing light doors, such as screen doors, lavatory doors, and cabinets. Constructed from solid brass, this bolt features a 1-3/4" backset and a 7/16" bolt throw. It is designed for a mortise installation, allowing for a flush fit that maintains the aesthetic of interior decor. The bolt has an overall dimension of 3" x 1-3/4" and a 7/8" projection. The strike plate is corrosion resistant, and the bolt is designed to function consistently across various environmental conditions. This product comes in a brushed chrome finish. As part of the Bolts series, this mortise bolt is intended for use in residential or light commercial settings where a flush-mounted locking mechanism is required. The installation requires a mortise cutout to accommodate the bolt body. This product includes a limited 1-year mechanical and 1-year finish warranty, providing coverage for the hardware components under normal use conditions.
