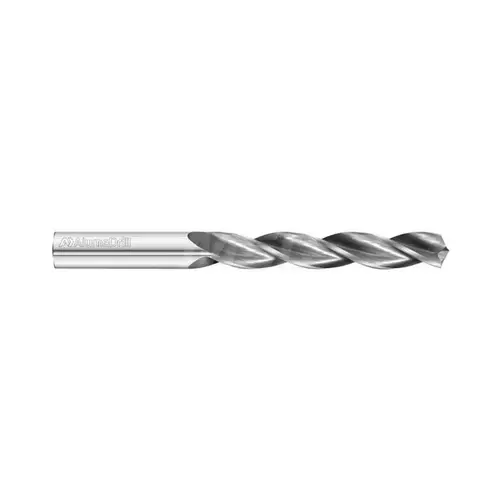

Jobber Length Drill Bit: 3/32" Dia, 130 degree, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

MSC 15426 Jobber Length Drill Bit: 3/32" Dia, 130 degree, Solid Carbide Bright/Uncoated

Item #: 15426 by MSC

See reviewsSee reviews
See reviews summary
In Stock

$72.68

/each
SAVE UP TO 7.27
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Number of Flutes

3

Cutting Direction

Right Hand

Series

1565

Point Type

Facet

Drill Bit Material

Solid Carbide

Spiral Type

Regular

Tool Application

Drilling

Coating/Finish

Bright/Uncoated

Coolant Through

No

Double Margin

No

Drill Bit Grade

General Purpose

Drill Bit Size (Decimal Inch)

0.0940

Drill Bit Size (Inch)

3/32

Drill Bit Size Range (Decimal Inch)

0.0500 - 0.1000

Drill Point Angle

130 degrees

Flute By Diameter Ratio

11xD

Flute Length (Decimal Inch)

1.0000

Flute Length (Inch)

1

Material Grade

Micrograin

Maximum Drilling Depth (Decimal Inch)

1.0000

Maximum Drilling Depth (Inch)

1

Number of Flats

0

Overall Length (Decimal Inch)

2.0000in

Overall Length (Inch)

2in

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

S

Shank Diameter (Decimal Inch)

0.0938

Shank Diameter (Inch)

3/32in

Shank Length (Decimal Inch)

1.0000in

Shank Length (Inch)

1in

Tool Performance

General Purpose

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.0000 to -0.0005

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: 3/32" Dia, 130 degree, Solid Carbide Bright Coated, 2" OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1565
