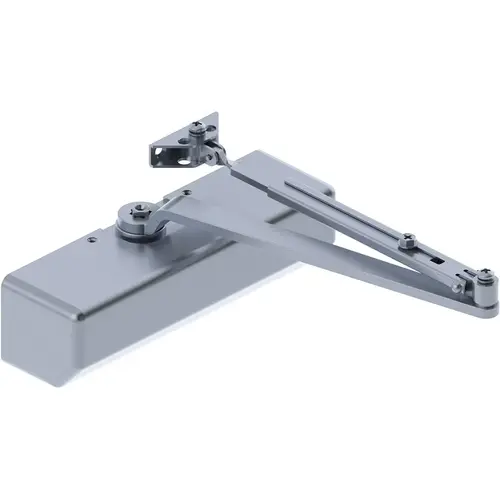

Hager 145672 5300 Multi-Mount 1-6 Adjustable Regular Door Closer Aluminum Finish
Item #: 145672 by Hager
UPC #: 798550456728
See reviews See
reviews
In Stock $129.83 /each
SAVE UP TO 12.98
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Ideal For Schools, Hospitals, And Other High-Use Environments
- Full Rack And Pinion Operation
- Precision Machined, Heat Treated Steel Piston
- Triple Heat Treated Steel Spindle
- Aluminum Alloy
Finish
Aluminum
COVERS - DOOR CONTROLS
STANDARD
FINISHES - DOOR CONTROLS
ALM - PAINTED SATIN ALUMINUM
MISC. - DOOR CONTROLS
STANDARD
Arms & Brackets
- Tri-Pack - regular, top jamb, and parallel arms - Standard
- 15% power adjustment in standard arm for regular and top jamb mount
FASTENERS - DOOR CONTROLS
STANDARD
Springs
- One piece seamless steel spring tube
- Double heat-treated, steel-tempered springs
- Precision-machined, heat-treated steel piston
Fasteners
- Self-reaming, self-tapping wood and machine screws
- Sex nuts and bolts
Use
Ideal for schools, hospitals, and other high-use environments
Valves
- Adjustable backcheck, sweep, and latching valves- standard
- Delayed action valve - optional
- All valves are staked
Maximum Door Weight
250 lbs.
Door Thickness
- 1-3/4" (44 mm)- standard
- 1-3/8" - 2-1/4" (36 mm - 57 mm) - optional
Cover
Full plastic cover and pinion cap
Material
Arm is forged steel
Grade 1 Heavy Duty Door Closer
Notes:
Certifications:
Warranty:
Lifetime warranty
Notes:
Notes:
- To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products.
- The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
- Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door
- If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. See adders for more information (add the list price of the option to the list price of the closer and take standard discounts).
- Accessories may not be available in all finishes. Please contact Hager for availability and lead time.
Certifications:
- BHMA Certified ANSI A156.4, adjustable sizes 1-6
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for up to 3 hours
- UL10C Positive Pressure Rated
- UL10B Neutral Pressure Rated
- 5300 Door Closer EPD
Warranty:
Lifetime warranty
Notes:
- To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products.
- The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
- Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door
- If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. See adders for more information (add the list price of the option to the list price of the closer and take standard discounts).
- Accessories may not be available in all finishes. Please contact Hager for availability and lead time.
