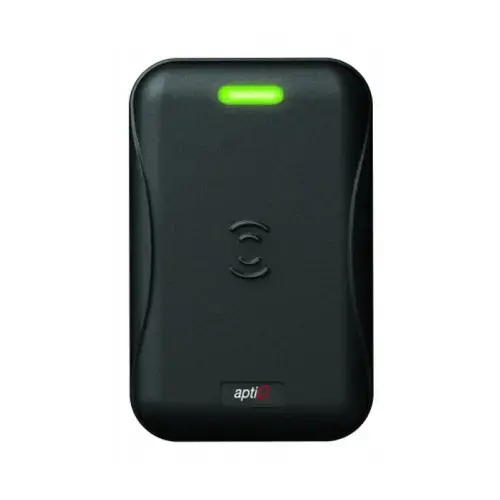

Schlage MT15 Aptiq Multi-Tech Reader-Wall Mount

MT15Wall Mount (Single-gang)

Schlage® multi-technology readers are designed to simplify your access control solutions and allow a transition from existing population proximity or magnetic stripe to more secure encrypted card technology at your own pace—without having to change readers as new technologies are available. Five available models to fit any need and works with multiple form factors including wristbands, cards, fobs and tags.

Schlage multi-technology readers contain both 125 kHz proximity and 13.56 MHz contactless smart card capability in one-unit handling multiple formats simultaneously. Wiegand and RS-485 output available for simple interface with most access control panels.

Features and benefits:

• Compatible with NFC-open smart phones using Schlage or aptiQ mobile credentials.

• Limited lifetime warranty

• Accommodates interior, exterior, metal and non-metal installation environments

• Quick-connect cable allows for easy installation

• Easy-to-install mounting bracket

• Available finishes include: Black (standard), cool-tone gray, cream and warm-tone brown

Specifications: Model*:

• MT15

Reader type:

• Multi-technology with keypad –single gang

Frequency:

• 13.56 MHz and 125 kHz

FIPS 201 compliant:

• Yes

Standard default PIV output:

• 75 bit PIV**

Standards:

• SO 14443A, 14443B, 15693

Certifications:

• FCC Certification, IC Certification, UL 294 Listed, RED Directive (15 EU Countries), CE Mark, IP65

Voltage range:

• 5-16 VDC

5-16 VDC:

• Linear DC

Current requirement (at 12 VDC and 25 C; mAmps):

• MT15 & MT15-485 Avg. 120 mA Peak 200 mA

Read range:

• Proximity: Up to 5" (12.7 cm)
• MIFARE Classic: Up to 4" (10 cm)
• MIFARE Plus: Up to 1" (2.5 cm)
• MIFARE DESFire EV1: Up to 2" (5.1 cm)
• PIV credential: Up to 2.5" (6.5 cm)

Cable specification:

• 18 AWG, 5 conductor stranded/shielded

System interfaces:

• Wiegand / Clock & Data / RS-485*** (OSDP)

Cabling distance:

• Wiegand output: 500 ft (152 m)

Physical dimensions (H x W x D):

• 5.1" x 3.25" x 0.76" 12.9 cm x 8.3 cm x 1.9 cm

Operating temperatures:

• -40° to 158°F (-40° to 70°C)

Weight:

• 9.1 oz

Material:

• PBT Polymer

Color options†:

• Black (standard)
• Cool tone gray
• Cream
• Warm tone brown

• ** Other output options available through configuration
• *** RS-485 model numbers include "-485" after the original model number. For example, MT11-485 is the RS-485 version of the multi-technology mini-mullion reader. Multi-drop, Open Standard Device Protocol (OSDP)
• † Lead time may apply for non-standard colors
