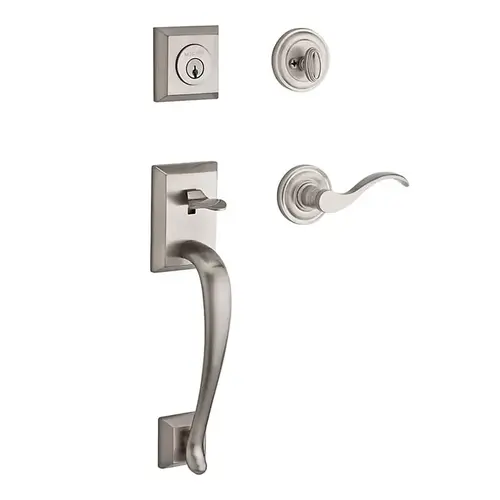

Baldwin Reserve SCNAPXCURLTRR150 Single Cylinder Napa Handleset Left Hand Curve Lever and Traditional Round Rose with 6AL Latch and Dual Strike Satin Nickel Finish
Item #: SCNAPXCURLTRR150 by Baldwin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Napa Handleset With Curve Lever
- Adjustable Ctc
- Accommodates 1-3/4" To 2" Thick Door; Up To 2-1/2" With Thick Door Kit
- 2-3/8" to 2-3/4" Adjustable Backset
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Height
11.5
Configuration
Handleset
Projection
2.89
Material
Brass
Lever Length
3.9687
Backset
Adjustable 2-3/8" or 2-3/4", 2-3/4", 2-3/8"
Handing
Left Hand
Keyway
C, KW1
Function
Single Cylinder, Keyed Entry
Door Thickness
1-3/4", 2", 1-7/8"
Mount
Sectional
Product Class
Residential
Theme
Modern
Collection
Reserve
Handle Style
Lever
Latch Faceplate
Drive-In, Round Corner, Square Corner
BHMA Certification
Grade 2
Cross Bore
1"
Cylinder
SmartKey 5 Pin, 5 Pin C
Edge Bore
1"
Grip Center to Center
8.4062
SmartKey
Yes
Solid Construction
Solid Brass
Series
Napa
Finish
Satin Nickel
Dimension
2-11/16" x 11-1/2" Handle with 2-8/9" Projection, 2-11/16" Square Cylinder
Strike
Dual Strike
Manufacturer Warranty
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Rose/Escutcheon Design
Traditional Round Rose
Door Range
1-3/4" to 2"
Hazardous Material
No
Strike Dimension
1" x 2-1/4" and 1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
150
Design
Napa Handleset Curve Lever and Traditional Round Rose
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Curve Lever
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
Single Cylinder Function: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.Left Handed: Handing is determined by standing on the outside of a room, facing the door, and noting on which side the door hinges are located. This handle is left handed, and so when standing outside of the room and facing the door the hinges will be on your left.Solid Brass Construction: Baldwin Reserve Series products are constructed from solid brass - providing a more luxurious, higher quality feel than door hardware made with lesser metals. When you hold a Baldwin product in your hand, you will immediately notice the difference that solid brass makes – it is heavier, stronger, and smoother than most of the door hardware on the market today.
