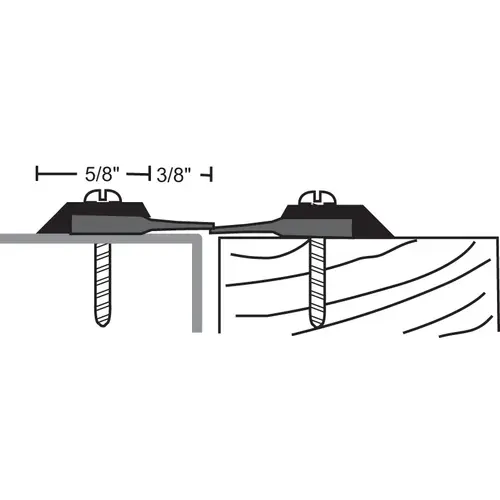

National Guard Products 115NA(SET)-84INClick To Copy Smoke Rated Astragal Set

115NAAnodized Aluminum Astragal with epdm Seal

National Guard Products, based in Memphis and founded in 1935, is a privately held Life-Safety Products Company serving the commercial construction market. 99% of NGP products are Made in the USA, and NGP's broad portfolio includes smoke seals, automatic door bottoms, thresholds, fire-rated vision kits, fire and impact-rated glazing, fire-rated continuous geared hinges, and sliding door hardware. NGP also has specialty products including a full suite of acoustical solutions, fire door accessories, hospitality product line, flood shields and the industry's only heavy-duty finger guard for day care centers.

Features:

• Aluminum alloy 6063, T5 temper

• Synthetic rubber polymer EPDM

• Very good abrasion resistance, tensile strength and memory

• Flame resistant

• Moisture resistant

• Temperature range -60°F to 250°F

• Good resistance to ozone, sunlight and aging

• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration

• Fire-rated Astragal Seals cannot replace any astragal required on the door by the door manufacturer to maintain its fire label

• IBC, NFPA 80, NFPA105, and NFPA 252 require the gap at the meeting edge between fire labeled doors must not exceed 1/8"

• #6 x 3/4" stainless steel sheet metal screws furnished

• Screw holes are slotted for adjustment

• Provided as two piece set

• EPDM is gray

• Anodized aluminum

Certifications: Certified by UL:

• Certified by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Positive Pressure:

• Certified by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Air Infiltration Test:

• Air Infiltration Test to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Smoke and Draft Control Gasketing:

• Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

ANSI/BHMA Certified:

• Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
