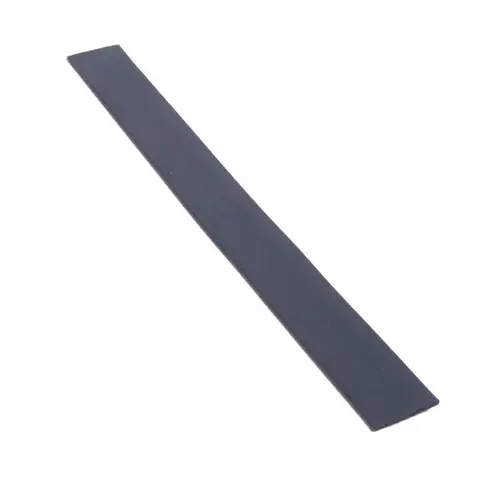

National Guard Products 5100S-86INClick To Copy Silicone Seal for Mullion Applications

5100Seal for Mullion Applications

National Guard Products, based in Memphis and founded in 1935, is a privately held Life-Safety Products Company serving the commercial construction market. 99% of NGP products are Made in the USA, and NGP's broad portfolio includes smoke seals, automatic door bottoms, thresholds, fire-rated vision kits, fire and impact-rated glazing, fire-rated continuous geared hinges, and sliding door hardware. NGP also has specialty products including a full suite of acoustical solutions, fire door accessories, hospitality product line, flood shields and the industry's only heavy-duty finger guard for day care centers.

Product Features:

• Synthetic rubber polymer: Siloxane closed cell sponge

• Self-Adhesive Silicone

• Excellent flexibility and memory

• Flame resistant

• Moisture resistant

• Temperature range -100°F to 500°F, remains flexible at extreme temperatures

• Excellent resistance to ozone, UV and aging

• Recommended for areas using FM200 or Halon Fire Suppression Systems

• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold

• Modified acrylic pressure sensitive adhesive protected by release liner

• Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations

• Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals

• End use temperature range of adhesive, long term exposure -30°F up to 250°F

• Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less

• 1-1/8" wide x 3/32" thick with an adhesive strip for mounting directly to the face of the mullion that doors close against

• Available in 86" and 96" lengths

Color:

• 5100N - Black Silicone
• 5100S - Gray Silicone

Certifications: Certified by UL:

• Certified by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Positive Pressure Certified:

• Certified by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

ANSI/BHMA Certified:

• Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
