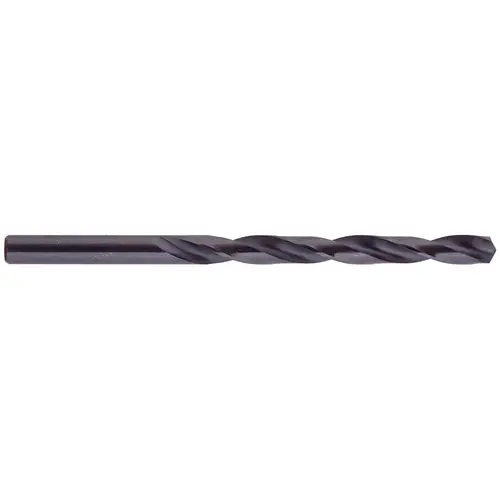

National Twist Drill 012359AW Jobber Drill: 25/64" Dia, 135 deg Point, High Speed Steel Black Oxide
Item #: 012359AW by National Twist Drill
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Web Thinning
Web-Thinned
Web Configuration
Tapered
Drill Bit Diameter Tolerance
+0.0000 to -0.0010 in
Vendor Drop Ship
N
UNSPSC Code
23241634
Shank Length (Inch)
1-7/16
Shank Length (Decimal Inch)
1.4375in
Shank Diameter (Inch)
27/64
Shank Diameter (Decimal Inch)
0.4219
Overall Length (Inch)
5-3/8
Overall Length (Decimal Inch)
5.375
Number of Flats
0
Maximum Drilling Depth (Inch)
3-15/16
Maximum Drilling Depth (Decimal Inch)
3.9375
Flute Length (Inch)
3-15/16
Flute Length (Decimal Inch)
3.9375
Flute By Diameter Ratio
9xD
Drill Point Angle
135 degrees
Drill Bit Size Range (Decimal Inch)
0.4000 - 0.5000
Drill Bit Size (Inch)
27/64
Drill Bit Size (Decimal Inch)
0.4219
Drill Bit Grade
Heavy Duty
Double Margin
No
Coolant Through
No
Coating/Finish
Black Oxide
Tool Application
Drilling
Spiral Type
Regular
Drill Bit Material
High Speed Steel
Point Type
Split Point
Series
Straight Shank
Cutting Direction
Right Hand
Number of Flutes
2
Shank Type
Straight-Cylindrical
Flute Type
Spiral
Product Overview
Jobber Drill: 25/64" Dia, 135 deg Point, High Speed Steel Black Oxide Coated, 5-1/8" OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series Straight Shank
