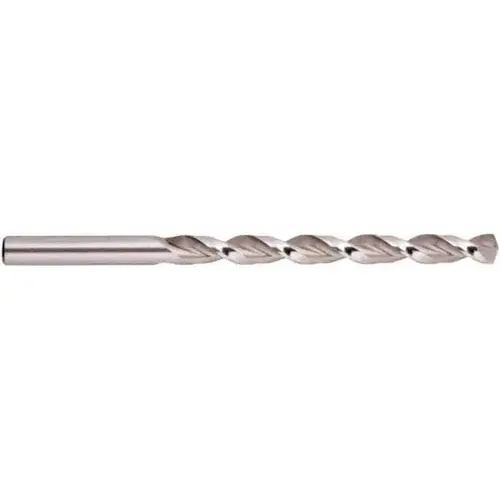

National Twist Drill 049228AW Jobber Length Drill Bit: #28, 135 degree, High Speed Steel Bright/Uncoated
Item #: 049228AW by National Twist Drill
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Number of Flutes
2
Cutting Direction
Right Hand
Series
Straight Shank
Point Type
Split Point
Drill Bit Material
High Speed Steel
Spiral Type
Regular
Tool Application
Drilling
Coating/Finish
Bright/Uncoated
Coolant Through
No
Double Margin
No
Drill Bit Grade
General Purpose
Drill Bit Size (Decimal Inch)
0.1405
Drill Bit Size (Inch)
9/64
Drill Bit Size (Wire)
#28
Drill Bit Size Range (Decimal Inch)
0.1000 - 0.1500
Drill Point Angle
135 degrees
Flute By Diameter Ratio
12xD
Flute Length (Decimal Inch)
1.7500
Flute Length (Inch)
1-3/4
Maximum Drilling Depth (Decimal Inch)
1.7500
Maximum Drilling Depth (Inch)
1-3/4
Number of Flats
0
Overall Length (Decimal Inch)
2.8750in
Overall Length (Inch)
2-7/8in
Shank Diameter (Decimal Inch)
0.1405
Shank Diameter (Inch)
9/64in
Shank Length (Decimal Inch)
1.1250in
Shank Length (Inch)
1-1/8in
Tool Performance
General Purpose
UNSPSC Code
23241634
Vendor Drop Ship
Y
Drill Bit Diameter Tolerance
+0.0000 to -0.0007 in
Web Configuration
Tapered
Web Thinning
Web-Thinned
Product Overview
Jobber Length Drill Bit: #28, 135 degree, High Speed Steel Bright Coated, 2-7/8" OAL, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 292
