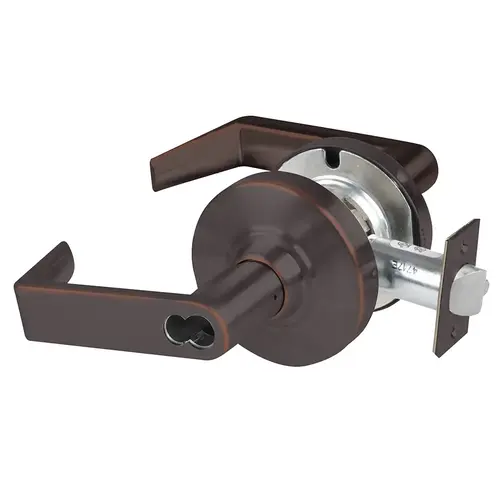

Schlage Commercial ND70JD RHO 643E ND Series Classroom Large Format Less Core Rhodes with 13-247 Latch 10-025 Strike Aged Bronze Finish
Item #: ND70JD RHO 643E by Schlage Commercial
Brand: Schlage Commercial
See reviewsSee reviews
In Stock
$632.32
886.16 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 22 units available
Finish: Aged Bronze
Design: Rhodes
Athens
Omega
Rhodes
Sparta
Tubular
Backset: 2-3/4" Backset
2-3/4 Inch
2-3/4" Backset
2-3/4", 1-1/8" x 2-1/4", Square Corner
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Classroom, Outside Lever Locked and Unlocked by Key, Inside Lever Always Unlocked for Immediate Egress
- ANSI/BHMA Certified A156.2-2011
- Handing: All ND-Series lever locksets are non-handed.
- 1-5/8" to 2-1/8" Door Range
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all functions including Vandlgard.
Function
Classroom
Finish
Aged Bronze
Backset
2-3/4" Backset
Strike
ANSI Strike
Design
Rhodes
Series
ND Series
Color Code
643E/US11E
Package Height
4.75
Package Length
9.5
Package Volume
372.28125
Package Width
8.25
Handing
Reversible
Alternate Part Number-1
186464
Fire Rated
3 Hours {A}
Origin
Mexico
BAA Qualified
Yes
Color
Aged Bronze
IMAP Policy
Yes
Substrate Type
Zinc and Steel
Door Handing
Non-Handed
Segment
Door Hardware
Duty Level
Heavy Duty
Grade
Grade 1
Collection
ND-Series
Keyed
Yes
Handle Type
Lever
Lock Type
Cylindrical
Lever Style
RHO - Rhodes
Keying
None (Select for Less Cylinder Options)
Cylinder and Keyways
S123
ANSI/BHMA Standards
F84
Standard Strike
10-025: ANSI, no box, 1-1/4" x 4-7/8" (1-3/16" Lip length) - Default Strike
Cylinder
JD - Schlage FSIC Prep Less Core
Electronic
No
Keys Included
2
Standard Latch
13-247: Deadlatch - 2-3/4" Backset - Square corner, 1-1/8" x 2-1/4"
Product Overview
Classroom Lock Function, Grade 1, Cylindrical Lock, Rhodes Lever, Schlage FSIC Less Core, Aged Bronze
The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
