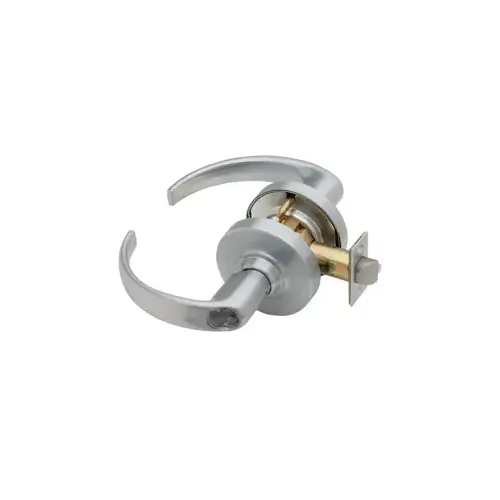

Schlage Commercial ND50BD SPA 626 ND Series Entry / Office Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Satin Chrome Finish
Item #: ND50BD SPA 626 by Schlage Commercial
UPC #: 840067603253
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Entry/Office, Push-Button Locking, Push-Button Locks Outside Lever Until Unlocked With Key or By Turning Inside Lever, Inside Lever is Always Free for Immediate Egress
- ANSI/BHMA Certified A156.2-2011
- Handing: All ND-Series lever locksets are non-handed.
- 1-5/8" to 2-1/8" Door Range
- Commercial Grade 1
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- UL Listed for 3 Hour Fire Door
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all functions including Vandlgard.
Finish
Satin Chrome
Backset
2-3/4" Backset
Function
Entry / Office
Strike
ANSI Strike
Design
Sparta
Series
ND Series
Color Code
626/US26D
Fire Rated
3 Hours {A}
Origin
Mexico
BAA Qualified
Yes
Package Height
4.75
Package Length
9.5
Package Volume
372.28125
Package Width
8.25
Warranty
3 Years
Pack Size
1
Assembled Depth (in.)
3.5
Assembled Height (in.)
3.5
Assembled Width (in.)
2.4375
Backset size (in.)
2-3/4
Certifications and Listings
ANSI Certified
Door Handing
Universal/Reversible
Door Locks & Knobs Product Type
Keyed Levers
General Material
Brass
Hardware Finish Family
Chrome
Housing Width (in.)
3.4375
Security/ANSI Grade
ANSI Grade 1 (Best)
Strike width (in.)
1.25
Lock Type
Keyed Entry
Handing
Reversible
UNSPSC
46171500
Alternate Part Number-1
186228
Grade
ANSI/BHMA Grade 1
Application
Healthcare; Education; Government; Office; Retail; Other Commercial Applications
Handle Type
Lever
Rose Diameter
3-7/16 Inch
Cylinder Type
BD-Less SFIC Core
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
ANSI Function
F82
Latch Number
13-247
Latch Type
Deadlatch
Strike Number
10-025
Strike Type
ANSI Strike
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Style
SPA-Sparta
Strike Size
1-1/4" x 4-7/8"
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Cylinder Type Used
Less Small Format Interchangeable Core
Function Description
Push button locking. Deadlocking latch bolt by knobs/levers except when outside knob/lever is locked by button inside or in face (edge). Inside knob/lever always free.
Front Size
1-1/8" x 2-1/4"
Function Family
Entry/Entrance/Office
Strike Lip
1-3/16 Inch
Product Projection
3-1/2 Inch
Trim Material
Pressure Cast Zinc (Lever)
Features
Heavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Lever Length-Inches
4.9375 Inch
Latch Corner
Square
Knob/Lever Size
4-15/16 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Curved Return Lever
Sub-Series
SchlageCom-ND50BD-SPA
Product Overview
The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
- Schlage ND series
- Entrance/office function
- Satin chrome finish
- Cylindrical lock
- Grade 1
- Straight lever
