KIT - Grade 1 Passage, Cylindrical Lock, Athens Lever, 2-3/4" Backset, UL, ANSI Strike, 619/US15 Satin Nickel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

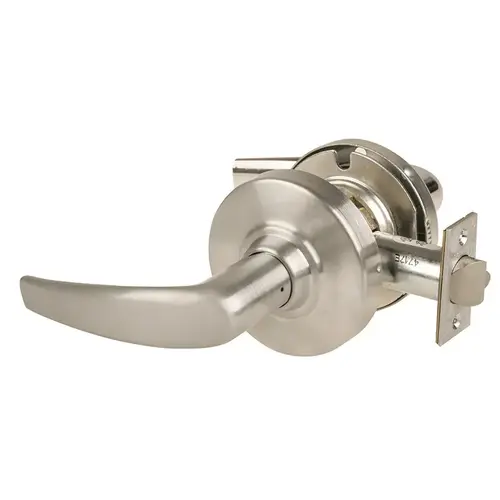

Schlage Commercial ND10S ATH 619 KIT - Grade 1 Passage, Cylindrical Lock, Athens Lever, 2-3/4" Backset, UL, ANSI Strike, 619/US15 Satin Nickel

Item #: ND10S ATH 619 by Schlage Commercial

UPC #: 043156629183

See reviewsSee reviews
In Stock

$488.07

/each
SAVE UP TO 48.81

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Passage, Both Levers Always Unlocked, Inside Lever is Always Free for Immediate Egress
  • Handing: All ND-Series lever locksets are non-handed.
  • ANSI/BHMA Certified A156.2-2011
  • Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
  • 1-5/8" to 2-1/8" Door Range
  • Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
  • Commercial Grade 1
  • UL Listed for 3 Hour Fire Door
  • Lock Chassis: Zinc plated for corrosion resistance.
  • Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
  • Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
  • Roses: Brass, bronze or zinc.
  • Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
  • Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
  • Warranty: Ten-year limited for all functions including Vandlgard.

Function

10-Passage

Finish

Satin Nickel

Backset

2-3/4 Inch

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Design

Athens

Series

ND Series

Thickness

1-5/8" - 2-1/8"

Strike Number

10-025

Package Volume

372.28125

Latch Number

13-248

Color

Satin Nickel Plated Clear Coated

Case Width

14.625"

Latch Type

Spring Latch

ANSI Function

F75

Hand

Not Handed

Grade

ANSI/BHMA Grade 1

Fire Rated

3 Hours {A}

Special Marks

Fire rated 3 Hours {A}

Strike Width

1-1/4"

Latch Backset Dim

2-3/4 In.

Lock Face Size

2-1/4 In. x 1-1/8 In.

Case Length

16.375"

Package Qty

1

Package Height

4.75"

Screws

Combination

Case Height

10"

Package Width

8.25"

Bolt Protection

1/2"

Case Volume

2394.84375

Color Code

619/US15

Strike Type

ANSI Strike

Origin

Mexico

BAA Qualified

Yes

Rose/Escutcheon Design

3-7/16 In. Diameter

Base Material

Brass or Bronze

Strike Height

4-7/8"

Lever/Knob Design

ATH - Athens

Package Length

9.5"

Finish Description

Satin Nickel

Lever Style

ATH-Athens

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Projection

3.3125

Lever Length

4.5625

Door Thickness

1 5/8" - 2 1/8"

Bore Size

2.1250

ADA Approved

False

Application

Healthcare; Education; Government; Office; Retail; Other Commercial Applications

Warranty

10 year mechanical

Handle Type

Lever

Rose Diameter

3-7/16 Inch

Latch Throw

1/2 Inch

ADA Compliant

YES

Finish Family

Satin Nickel

Door Cross Bore

2.125 Inch

Standards

ANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161

Function Description

Latch retracted by knobs/levers at all times

Front Size

1-1/8" x 2-1/4"

Function Family

Passage/Hall/Closet

Strike Lip

1-3/16 Inch

Product Projection

3-5/16 Inch

Trim Material

Pressure Cast Zinc (Lever)

Features

Heavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications

Strike Size

1-1/4" x 4-7/8"

Manufacturer Parent

Allegion

Lever Length-Inches

4.5625 Inch

Latch Corner

Square

Knob/Lever Size

4-9/16 Inch

Latch Bolt Material

Stainless Steel

Lever Style Family

Straight Lever

Sub-Series

CL_Cylindrical_Locks_schlage_commercial_215

Alternate Part Number-1

201055

Product Overview
ND SeriesCylindrical Locks

ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles.

All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, commonly used with cylindrical locks. They are ideal for all new construction and retrofit applications.

Product Specifications: Material:
  • Modular design of zinc and steel components plated for corrosion protection
Door thickness:
  • Standard: 1 5/8" to 2 1/8"
Handing:
  • Non-Handed
Levers:
  • Standard: Nine designs, pressure cast zinc, plated to match product finish specification
Roses:
  • Wrought brass, bronze, or zinc, plated to match product finish specification
Finishes:
  • 10 available
  • (605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e)
Backset:
  • Standard: 2 3/4"
Faceplate:
  • Standard : 1 1/8" x 2 1/4"
Bolt:
  • Standard : 1/2" throw via Oil Impregnated Stainless Steel
Strike:
  • Standard: ANSI Curved Lip: 1 1/4" x 4 7/8" x 1 3/16"
Keying - Formats:
  • Standard: 3 Schlage
  • (KIL or FSIC or SFIC)
Keying - Access Security:
  • Standard: 6-Pin Patented Everest 29
Warranty:
  • 10 years mechanical, 1 year wired electrified
Certifications: ANSI/BHMA:
  • All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks. Wired electrified complies with A156.25 (indoor), wireless electronic complies with A156.25 (indoor/outdoor) requirements for electrified locking devices
ICC:
  • Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL:
  • All locks 3 hour A label single firedoor 4'0" x 10'0"
  • pair doors 3 hour firedoor 8'0" x 8'0" with 3/4" latch option
  • pair doors 90 minute fire 8'0" x 10'0" with 3/4" latch option
CA Fire Code:
  • All levers with a return to door of 1/2"
  • (64 mm) or less comply
    (Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)
FL Building Code:
  • Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes
Federal:
  • Meets FF-H-106C Series 161
