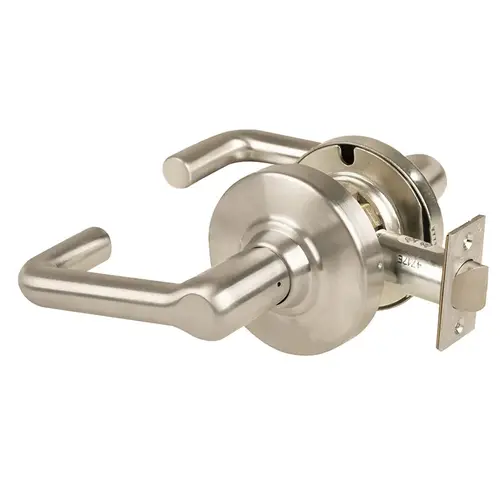

Schlage Commercial ND Series Passage Tubular with 13-248 Latch 10-025 Strike Satin Nickel Finish
Item #: ND10S TLR 619 by Schlage Commercial
Brand: Schlage Commercial
UPC #: 043156629305
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Passage, Both Levers Always Unlocked, Inside Lever is Always Free for Immediate Egress
- Handing: All ND-Series lever locksets are non-handed.
- ANSI/BHMA Certified A156.2-2011
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- 1-5/8" to 2-1/8" Door Range
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all functions including Vandlgard.
Function
10-Passage Latch
Finish
619 - Satin Nickel
Backset
2-3/4" Backset
Strike
ASA Strike
Design
Tubular
Series
ND Series
Fire Rated
3 Hours {A}
Origin
Mexico
BAA Qualified
Yes
Package Height
4.75"
Package Length
9.5"
Package Volume
372.28125
Package Width
8.25"
ANSI Function
F75 - Passage
Bolt Protection
1/2"
Case Height
10"
Case Volume
2394.84375
Case Width
14.625"
Latch Backset Dim
2-3/4 In.
Latch Number
13-248
Latch Type
Spring Latch (Unguarded)
Lever/Knob Design
TLR - Tubular
Lock Face Size
2-1/4 In. x 1-1/8 In.
Package Qty
1
Rose/Escutcheon Design
3-7/16 In. Diameter
Screws
Combination
Special Marks
Fire rated 3 Hours {A}
Strike Height
4-7/8"
Strike Number
10-025
Strike Type
ASA
Strike Width
1-1/4"
Base Material
Brass or Bronze
Grade
Grade 1
Thickness
1-5/8" - 2-1/8"
Hand
Not Handed
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Case Length
16.375"
Dimension
3-7/16" Rose with 4-15/16" Lever and 3" Projection
Material
Zinc Base
Handing
Reversible
Door Thickness
1-5/8" to 2-1/8"
Manufacturer Warranty
Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
UL Listing Type
UL Listed for 3 Hour Fire Door
Door Range
1-5/8" to 2-1/8"
Hazardous Material
No
Strike Dimension
4-7/8" with 1-1/4" Lip
Cross Bore Size
2-1/8" Bore with Two 5/16" Post Holes
Finish code
619
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Lever Knob Design
Tubular Lever
No of inners
1
IMAP Policy
Yes
Substrate Type
Zinc and Steel
Door Handing
Non-Handed
Segment
Door Hardware
Duty Level
Heavy Duty
Collection
ND-Series
Lever Design
TLR - Tubular
Keyed
No
Handle Type
Lever
Lock Type
Cylindrical
ANSI/BHMA Standards
F75
Standard Strike
10-025: ANSI, no box, 1-1/4" x 4-7/8" (1-3/16" Lip length)
Electronic
No
Standard Latch
13-248: Spring Latch - 2-3/4" Backset - Square corner, 1-1/8" x 2-1/4"
Projection
3"
Product Overview
Passage Latch Function, Grade 1, Cylindrical Lock, Tubular Lever, Satin Nickel Plated Clear Coated
The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
