ND Series Single Dummy Broadway Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

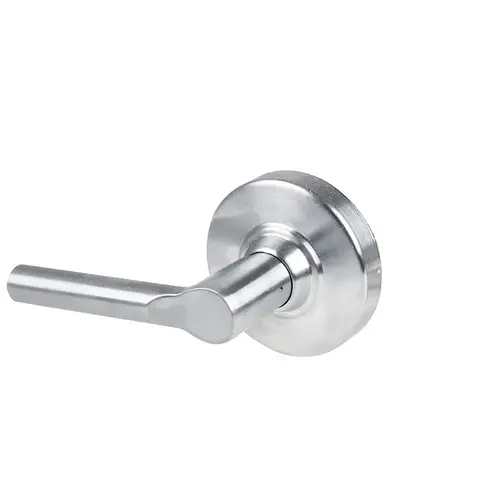

Schlage Commercial ND170 BRW 626 ND Series Single Dummy Broadway Satin Chrome Finish

Item #: ND170 BRW 626 by Schlage Commercial

See reviewsSee reviews
See reviews summary
In Stock

$146.56

/each
SAVE UP TO 14.66
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Single Dummy Trim, Dummy Trim for One Side of Door, Used for Door Pull or As Matching Inactive Trim
  • ANSI/BHMA Certified A156.2-2011
  • Handing: All ND-Series lever locksets are non-handed.
  • 1-5/8" to 2-1/8" Door Range
  • Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
  • Commercial Grade 1
  • UL Listed for 3 Hour Fire Door
  • Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
  • Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
  • Lock Chassis: Zinc plated for corrosion resistance.
  • Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
  • Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
  • Roses: Brass, bronze or zinc.
  • Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
  • Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
  • Warranty: Ten-year limited for all functions including Vandlgard.

Finish

Satin Chrome

Function

Single Dummy

Design

Broadway

Series

ND Series

Color

Satin Chrome

Color Code

626/US26D

Fire Rated

3 Hours {A}

Origin

Mexico

BAA Qualified

Yes

Package Height

4.75

Package Length

9.5

Package Volume

372.28125

Package Width

8.25

Handing

Reversible

Dimension

3-7/16" Rose with 4-9/16" Lever and 3-5/16" Projection

Material

Zinc Base

Manufacturer Warranty

Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Rose/Escutcheon Design

Rhodes Rose

UL Listing Type

UL Listed for 3 Hour Fire Door

Hazardous Material

No

Finish code

626

Lever Knob Design

Broadway Lever

No of inners

1

Product Overview

Single Dummy Trim, Grade 1, Broadway Lever, Satin Chromium Plated

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.

A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application.

The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
