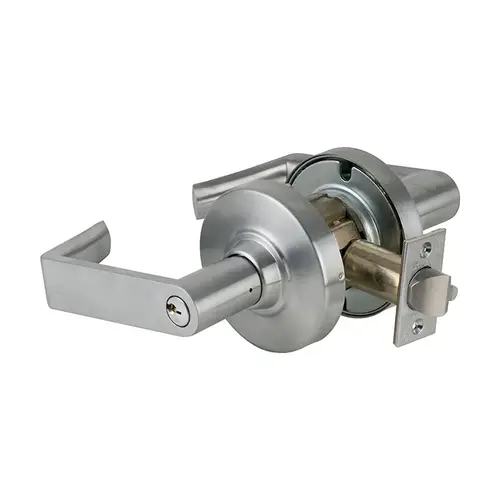

Schlage Commercial ND80PDEU RHO 626 ND80PDEU Rhodes Electrified Storeroom Lock - Fail Secure, Satin Chrome
Item #: ND80PDEU RHO 626 by Schlage Commercial
In Stock $849.70 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Storeroom Electrical, Outside Lever Continuously Locked Electrically, Unlocked By Key Outside or By Switch or Power Failure, Auxiliary Latch Deadlocks Latchbolt When Door is Closed, Inside Lever Always Unlocked for Immediate Egress
- Door thickness: 1 5⁄8" to 21 ⁄8" (41 mm–54 mm) standard including Vandlgard® functions. 1 3⁄4" - 2” for function D85. See accessories (Page 21) for spacers required for 1 3⁄8" doors.
- Backset: 2 3⁄4" (70 mm) standard. 2 3⁄8", 33⁄4" and 5" (60 mm, 95 mm, 127 mm) optional.
- ANSI/BHMA Certified A156.2-2011
- 1-5/8" to 2-1/8" Door Range
- Faceplate: Brass, bronze or stainless steel. 11 ⁄8" x 21 ⁄4" (29 mm x 57 mm) square corner, beveled.
- Lock chassis: Zinc plated for corrosion resistance.
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
- Latch bolt: Steel, 1 ⁄2" (12 mm) throw, deadlocking on keyed and exterior functions. 3⁄4" (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed trim: Levers: Pressure cast zinc, plated to match finish symbols. Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 11 ⁄4" x 47 ⁄8" x 1 3⁄16" lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder and keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all mechanical functions including Vandlgard; 1 year limited for electrified functions.
Finish
Satin Chrome
Backset
2-3/4 Inch
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Design
Rhodes
Function
80EU-Electrically Unlocked
Color Code
626/US26D
Origin
Mexico
BAA Qualified
Yes
Package Height
4.75
Package Length
9.5
Package Volume
372.28125
Package Width
8.25
Handing
Non-Handed
Finish Description
Satin Chrome
Product Type
Electronic Cylindrical Lock
Grade
ANSI/BHMA Grade 1
Lever Length
4.5625
Projection
2.9375
Door Thickness
1-5/8 to 2-1/8 Inch
Latch Number
13-247
Strike Number
10-025
Lever Style
RHO-Rhodes
Rose/Escutcheon Trim
Round Rose
Bore Size
2.1250
Application
High Traffic Areas; New Construction
Hand
Non-Handed
Voltage
24 VDC
Warranty
10 Year Mechanical; 1 Year Wired Electrified
Operating Temperature
32 to 120°F
Current Draw
0.23A Maximum; 0.01A Holding
Cylinder Type
Conventional
Latch Throw
1/2 Inch
Strike Type
ANSI Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
(2) Nickel Silver Cut Keys
Door Cross Bore
2.125 Inch
Latch Size
1-1/8" x 2-1/4"
Standards
ANSI/BHMA A156.2 Series 4000; Complies with ICC A117.1 Accessible and Usable Buildings and Facilities; UL Listed for 3-hour Fire Door; Meets BAA (Buy American Act)
Function Description
Outside Lever is Fixed; Entrance by Key Only; Inside Lever Always Free for Immediate Egress
Front Size
1-1/8" x 2-1/4"
Function Family
Storeroom
Strike Lip
1-3/16 Inch
Features
Universal Input Voltage; Low Maximum Current Draw Allows Multiple Locks on a Single Power Supply; Low Holding Current Produces Minimal Heat, Eliminating "Hot Levers" in Electrically Locking Applications
Strike Size
1-1/4" x 4-7/8" x 1-3/16"
Lever Projection
2-15/16 Inch
Manufacturer Parent
Allegion
Lever Length-Inches
4-9/16 Inch
Lever Style Family
Straight Return Lever
Lever Material
Pressure Cast Zinc
Sub-Series
EAC_Electronic_Cylindrical_Locks_schlage_commercial_3
ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles.
All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, commonly used with cylindrical locks. They are ideal for all new construction and retrofit applications.
Product Specifications: Material:- Modular design of zinc and steel components plated for corrosion protection
- Standard: 1 5/8" to 2 1/8"
- Non-Handed
- Standard: Nine designs, pressure cast zinc, plated to match product finish specification
- Wrought brass, bronze, or zinc, plated to match product finish specification
- 10 available
- (605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e)
- Standard: 2 3/4"
- Standard : 1 1/8" x 2 1/4"
- Standard : 1/2" throw via Oil Impregnated Stainless Steel
- Standard: ANSI Curved Lip: 1 1/4" x 4 7/8" x 1 3/16"
- Standard: 3 Schlage
- (KIL or FSIC or SFIC)
- Standard: 6-Pin Patented Everest 29
- 10 years mechanical, 1 year wired electrified
- All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks. Wired electrified complies with A156.25 (indoor), wireless electronic complies with A156.25 (indoor/outdoor) requirements for electrified locking devices
- Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
- All locks 3 hour A label single firedoor 4'0" x 10'0"
- pair doors 3 hour firedoor 8'0" x 8'0" with 3/4" latch option
- pair doors 90 minute fire 8'0" x 10'0" with 3/4" latch option
- All levers with a return to door of 1/2"
- (64 mm) or less comply
(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)
- Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes
- Meets FF-H-106C Series 161
