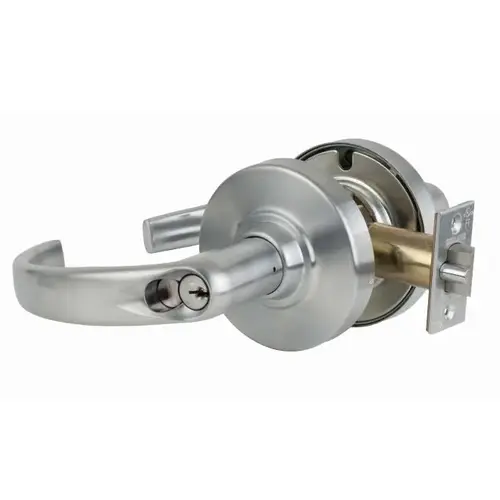

Schlage ND92RDSPA626 ND Series Vandlgard Entry Large Format Sparta with 13-247 Latch 10-025 Strike Satin Chrome Finish
Item #: ND92RDSPA626 by Schlage Commercial
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Entry, Turn/Push-Button Locking, Pushing and Turning Button Disengages Outside Lever, Requiring Use of Key Until Button is Manually Unlocked, Push-Button Locking, Pushing Button Disengages Outside Lever Until Unlocked By Key or By Turning Inside Lever
- Handing: All ND-Series lever locksets are non-handed.
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- ANSI/BHMA Certified A156.2-2011
- 1-5/8" to 2-1/8" Door Range
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Commercial Grade 1
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis: Zinc plated for corrosion resistance.
- UL Listed for 3 Hour Fire Door
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all functions including Vandlgard.
Finish
Satin Chrome
Series
ND Series
Design
Sparta
Strike
ANSI Strike
Backset
2-3/4" Backset
Function
Entry Vandlguard
Handing
Reversible
Color
Satin Chrome
Color Code
626/US26D
Fire Rated
3 Hours {A}
Origin
Mexico
Package Height
4.75
Package Length
9.5
Package Volume
372.28125
Package Width
8.25
Product Overview
ND Series Vandlgard Entry Large Format Sparta with 13-247 Latch 10-025 Strike Satin Chrome Finish
