ND Series Vandlgard Storeroom Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

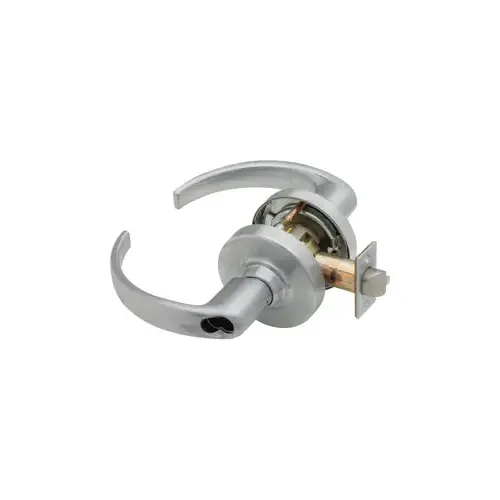

Schlage Commercial ND96BD SPA 626 ND Series Vandlgard Storeroom Small Format Less Core Sparta with 13-247 Latch 10-025 Strike Satin Chrome Finish

Item #: ND96BD SPA 626 by Schlage Commercial

UPC #: 840067609842

See reviewsSee reviews
In Stock

$649.69

/each
SAVE UP TO 64.97

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Storeroom, Outside Lever Always Disengaged, Entrance by Key Only, Inside Lever Always Unlocked for Immediate Egress
  • ANSI/BHMA Certified A156.2-2011
  • Handing: All ND-Series lever locksets are non-handed.
  • 1-5/8" to 2-1/8" Door Range
  • Commercial Grade 1
  • Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
  • UL Listed for 3 Hour Fire Door
  • Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
  • Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
  • Lock Chassis: Zinc plated for corrosion resistance.
  • Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
  • Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
  • Roses: Brass, bronze or zinc.
  • Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
  • Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
  • Warranty: Ten-year limited for all functions including Vandlgard.

Finish

Satin Chrome

Backset

2-3/4" Backset

Strike

ANSI Strike

Design

Sparta

Series

ND Series

Function

Storeroom Vandlgard

Color Code

626/US26D

Fire Rated

3 Hours {A}

Origin

Mexico

BAA Qualified

Yes

Package Height

4.75

Package Length

9.5

Package Volume

372.28125

Package Width

8.25

Warranty

3 Years

Pack Size

1

Assembled Depth (in.)

3.5

Assembled Height (in.)

3.5

Assembled Width (in.)

2.4375

Certifications and Listings

ANSI Certified

Door Handing

Universal/Reversible

Door Locks & Knobs Product Type

Storeroom Levers

General Material

Brass

Hardware Finish Family

Chrome

Security/ANSI Grade

ANSI Grade 1 (Best)

Handing

Reversible

UNSPSC

46171500

Alternate Part Number-1

146911

Product Overview

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.

  • Schlage ND series
  • Storeroom function
  • Satin chrome finish
  • Cylindrical lock
  • Grade 1
  • Straight lever
