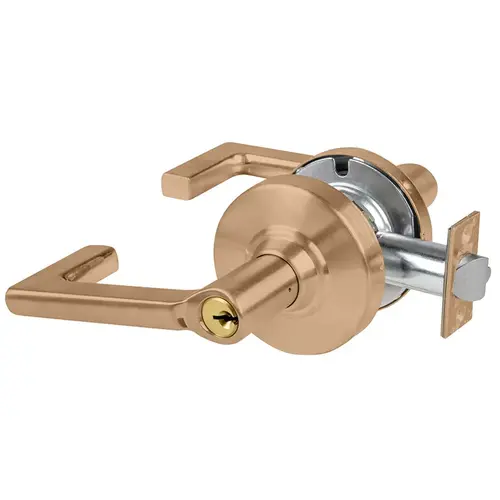

Schlage Commercial ND50PD LON 612 ND Series Entry / Office C123 Keyway Longitude with 13-247 Latch 10-025 Strike Satin Bronze Finish
Item #: ND50PD LON 612 by Schlage Commercial
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Handing: All ND-Series lever locksets are non-handed.
- Entry/Office, Push-Button Locking, Push-Button Locks Outside Lever Until Unlocked With Key or By Turning Inside Lever, Inside Lever is Always Free for Immediate Egress
- ANSI/BHMA Certified A156.2-2011
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- 1-5/8" to 2-1/8" Door Range
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all functions including Vandlgard.
Grade
Grade 1
Thickness
1-5/8 In. - 2-1/8 In.
Hand
Not Handed
Color
Satin Bronze Clear Coated
Color Code
612/US10
Case Length
16.375"
Keyway
S123
Function
Entry / Office
Keying
Keyed Different
Cylinder Type
Conventional Cylinder
Fire Rated
3 Hours {A}
Origin
Mexico
BAA Qualified
Yes
Package Height
4.75"
Package Length
9.5"
Package Volume
372.28125
Package Width
8.25"
ANSI Function
F82 - Entry
Bolt Protection
1/2"
Case Height
10"
Case Volume
2394.84375
Case Width
14.625"
Key(s)
Cut
Latch Backset Dim
2-3/4 In.
Latch Number
13-247
Latch Type
Dead Latch (Guarded)
Lever/Knob Design
LON - Longitude
Lock Face Size
2-1/4 In. x 1-1/8 In.
Package Qty
1
Rose/Escutcheon Design
3-7/16 In. Diameter
Screws
Combination
Special Marks
Conventional cylinder, Fire rated 3 Hours {A}
Strike Height
4-7/8"
Strike Number
10-025
Strike Type
ASA
Strike Width
1-1/4"
Base Material
Bronze
Finish
Satin Bronze
Backset
2-3/4" Backset
Strike
ANSI Strike
Design
Longitude
Handing
Reversible
