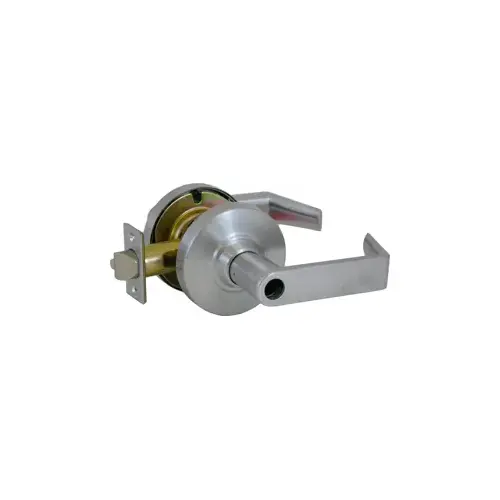

ND Series Entry Less Cylinder Rhodes with 13-247 Latch 10-025 Strike Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Commercial ND53LD RHO 626Click To Copy ND Series Entry Less Cylinder Rhodes with 13-247 Latch 10-025 Strike Satin Chrome Finish

Item #: ND53LD RHO 626 by Schlage Commercial

UPC #: 043156549887

See reviewsSee reviews
In Stock

$523.81

/each
SAVE UP TO 52.38

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 554 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Handing: All ND-Series lever locksets are non-handed.
  • Entrance, Turn/Push-Button Locking, Pushing and Turning Button Locks Outside Lever, Requiring Use of Key Until Button is Manually Unlocked, Pushing Button Locks Outside Lever Until Unlocked By Key or By Turning Inside Lever, Inside Lever is Always Free
  • ANSI/BHMA Certified A156.2-2011
  • Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
  • 1-5/8" to 2-1/8" Door Range
  • Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
  • Commercial Grade 1
  • UL Listed for 3 Hour Fire Door
  • Lock Chassis: Zinc plated for corrosion resistance.
  • Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
  • Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
  • Roses: Brass, bronze or zinc.
  • Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
  • Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
  • Warranty: Ten-year limited for all functions including Vandlgard.

Finish

US26D Satin Chrome (626)

Backset

2-3/4 Inch

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Design

Rhodes

Series

ND Series

Finish Description

Satin Chrome

Lever Style

RHO-Rhodes

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Warranty

10 year mechanical

Aluminium Bottle Contents

Swinging

ProductType

Manual

Cylinder Included

No

Alternate Part Number-1

133416

Latch Bolt Type

Deadlatch

Knob/Lever Design

Rhodes

Rose/Escutcheon Size

3-7/16"

Latch Bolt Faceplate Size

2-1/4" x 1-1/8"

Door Bore Size

2-1/8"

Lock Category

Cylindrical Lock

Door Thickness Min

1-5/8"

Latch Bolt Face Type

Square Corner

Latch Bolt Throw

1/2"

Rose/Escutcheon Style

Rose

Door Thickness Max

2-1/8"

Knob/Lever Style

Lever

Pack Size

1

Height

4.75

Length

9.5

Width

8

Sub-Series

CL_Cylindrical_Locks_schlage_commercial_268

Lever Style Family

Straight Return Lever

Latch Bolt Material

Stainless Steel

Knob/Lever Size

4-9/16 Inch

Latch Corner

Square

Lever Length-Inches

4.5625 Inch

Manufacturer Parent

Allegion

Strike Size

1-1/4" x 4-7/8"

Finish Family

Satin Chrome

ADA Compliant

YES

Features

Heavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications

Trim Material

Pressure Cast Zinc (Lever)

Product Projection

2-15/16 Inch

Strike Lip

1-3/16 Inch

Function Family

Entry/Entrance/Office

Front Size

1-1/8" x 2-1/4"

Function Description

Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.

Cylinder Type Used

Less Cylinder

Standards

ANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161

Door Cross Bore

2.125 Inch

Latch Throw

1/2 Inch

Rose Diameter

3-7/16 Inch

Handle Type

Lever

Application

Healthcare; Education; Government; Office; Retail; Other Commercial Applications

Cylinder

Less standard core

ADA Approved

False

Bore Size

2.1250

Door Thickness

1 5/8" - 2 1/8"

Lever Length

4.5625

Projection

2.9375

Handing

Reversible

Base Material

Brass or Bronze

Strike Width

1-1/4"

Strike Type

ANSI Strike

Strike Number

10-025

Strike Height

4-7/8"

Special Marks

Fire rated 3 Hours {A}

Screws

Combination

Rose/Escutcheon Design

3-7/16 In. Diameter

Package Qty

1

Lock Face Size

2-1/4 In. x 1-1/8 In.

Lever/Knob Design

Rhodes Lever

Latch Type

Deadlatch

Latch Number

13-247

Latch Backset Dim

2-3/4 In.

Case Width

14.625"

Case Volume

2394.84375

Case Height

10"

Bolt Protection

1/2"

ANSI Function

F109

Package Width

8.25"

Package Volume

372.28125

Package Length

9.5"

Package Height

4.75"

BAA Qualified

Yes

Origin

Mexico

Fire Rated

3 Hours {A}

Cylinder Type

L-Less Conventional Cylinder

Function

53-Entrance

Case Length

16.375"

Color Code

626/US26D

Hand

Not Handed

Thickness

1-5/8" - 2-1/8"

Grade

ANSI/BHMA Grade 1

Product Overview
ND SeriesCylindrical Locks

ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles.

All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, commonly used with cylindrical locks. They are ideal for all new construction and retrofit applications.

Product Specifications: Material:
  • Modular design of zinc and steel components plated for corrosion protection
Door thickness:
  • Standard: 1 5/8" to 2 1/8"
Handing:
  • Non-Handed
Levers:
  • Standard: Nine designs, pressure cast zinc, plated to match product finish specification
Roses:
  • Wrought brass, bronze, or zinc, plated to match product finish specification
Finishes:
  • 10 available
  • (605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e)
Backset:
  • Standard: 2 3/4"
Faceplate:
  • Standard : 1 1/8" x 2 1/4"
Bolt:
  • Standard : 1/2" throw via Oil Impregnated Stainless Steel
Strike:
  • Standard: ANSI Curved Lip: 1 1/4" x 4 7/8" x 1 3/16"
Keying - Formats:
  • Standard: 3 Schlage
  • (KIL or FSIC or SFIC)
Keying - Access Security:
  • Standard: 6-Pin Patented Everest 29
Warranty:
  • 10 years mechanical, 1 year wired electrified
Certifications: ANSI/BHMA:
  • All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks. Wired electrified complies with A156.25 (indoor), wireless electronic complies with A156.25 (indoor/outdoor) requirements for electrified locking devices
ICC:
  • Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL/cUL:
  • All locks 3 hour A label single firedoor 4'0" x 10'0"
  • pair doors 3 hour firedoor 8'0" x 8'0" with 3/4" latch option
  • pair doors 90 minute fire 8'0" x 10'0" with 3/4" latch option
CA Fire Code:
  • All levers with a return to door of 1/2"
  • (64 mm) or less comply
    (Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)
FL Building Code:
  • Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes
Federal:
  • Meets FF-H-106C Series 161
