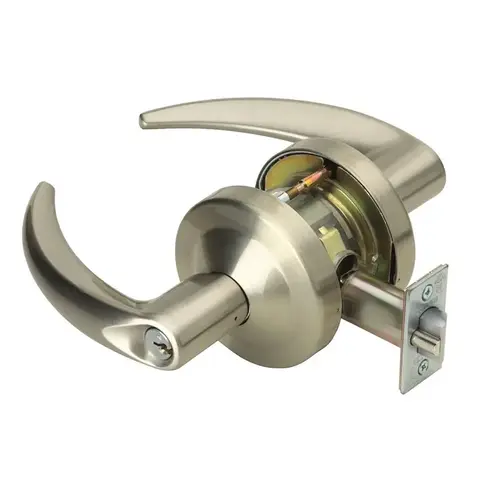

Lock Cylindrical Lock Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Lock Cylindrical Lock Satin Chrome

Item #: ND80PD OME 626 KA C KWY by Schlage Commercial

Brand: Schlage

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Handing: All ND-Series lever locksets are non-handed.
  • Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
  • Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
  • Lock Chassis: Zinc plated for corrosion resistance.
  • Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
  • Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
  • Roses: Brass, bronze or zinc.
  • Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
  • Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
  • Warranty: Ten-year limited for all functions including Vandlgard.

Number of Pins

6

Base Material

Brass or Bronze

Strike Width

1-1/4"

Strike Type

ASA

Strike Number

10-025

Strike Height

4-7/8"

Special Marks

Conventional cylinder, Fire rated 3 Hours {A}

Screws

Combination

Rose/Escutcheon Design

3-7/16 In. Diameter

Package Qty

1

Lock Face Size

2-1/4 In. x 1-1/8 In.

Lever/Knob Design

OME - Omega

Latch Type

Dead Latch (Guarded)

Latch Number

13-247

Latch Backset Dim

2-3/4 In.

Key(s)

Cut

Case Width

14.625"

Case Volume

2394.84375

Case Height

10"

Bolt Protection

1/2"

ANSI Function

F86 - Storeroom

Package Width

8.25"

Package Volume

372.28125

Package Length

9.5"

Package Height

4.75"

BAA Qualified

Yes

Origin

Mexico

Fire Rated

3 Hours {A}

Cylinder Type

Conventional Cylinder

Keying

Keyed Alike

Function

80-Storeroom Lock

Keyway

C

Case Length

16.375"

Color Code

626/US26D

Color

Satin Chrome

Hand

Not Handed

Thickness

1-5/8" - 2-1/8"

Grade

Grade 1

Product Overview

Storeroom Lock Function, Grade 1, Cylindrical Lock, Conventional Cylinder, C Keyway, Omega Lever, Satin Chrome

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.

A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application.

The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
