Norton 5610K1-SM BSP Door Controls Door Operators Black Suede Powder Coat
Item #: 5610K1-SM BSP by Norton
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Operators for interior doors shall be products of one manufacturer and be matched in style.
- Operator (non-fire rated doors) closing force shall be adjustable to ensure adequate closing control and shall simulate conventional door closer opening and closing forces unless the power operator motor is activated or in the event of a power outage to the operator.
- Operators shall be non-handed and have electrically controlled backcheck, sweep, and latch with manual adjustment to set both the full open and full closed door positions.
- Maximum door open shall be adjustable up to 95°, pull side mounting, conditions permitting.
- Operators can be SELECTIVELY ACTIVATED (i.e. external wall switches, radio frequency devices).
- Operators shall have input line rating of 120VAC, .6A, and include on board relay contact for interfacing with products having a rating of 24VDC at 1A.
- Door operators shall include an external On/Off Switch to defeat powered opening cycle and an internal circuit breaker switch to interrupt input power for servicing.
- Operators shall be ETL certified and conform to ANSI/U.L. standard 325 for automatic closing doors.
- Door operators shall be in compliance with the requirements of the Americans with Disabilities Act (ADA) and ANSI/BHMA standard A117.1.
Color
Black Suede Powder Coat
Color Code
BSP
Origin
USA
BAA Qualified
Yes
Package Height
7
Package Length
25
Package Volume
1400
Package Width
8
Product Overview

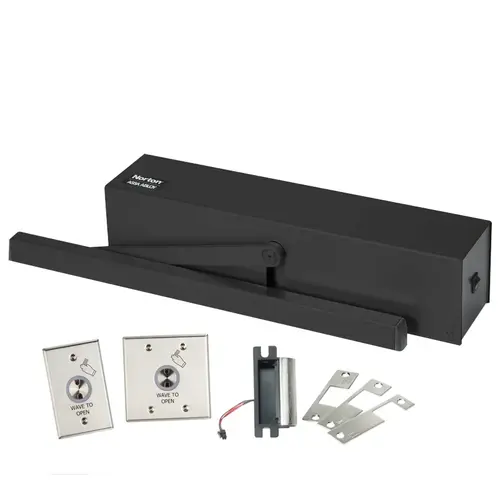

Low Energy Door Operator, Surface Mount, Pull Side, Slide Track, Rigid Arm (Track), Onboard Power Supply, 700 Switch, HES 1006CLB Strike, Black Suede Powder Coat
The 5600 Series Operators offer functionality and control at an affordable price. Ideal for retrofit applications, the 5600 Series converts interior, non-fire rated doors for ADA compliance easily and affordably and provides a simple way to achieve touchless environments in public restrooms. Available for push or pull mounting, this unit can be operated manually or activated by wall switches, or radio frequency devices. Easy to install, set-up and adjust, the 5600 Series is perfect for ADA-compliant offices, classrooms and dorm rooms, and touch free applications like public restrooms, labs and examination rooms.
The 5600 Series offers functionality and control at an affordable price.
Ideal for retrofit applications, the 5600 Series converts interior, non-fire rated doors for ADA compliance easily and affordably and provides a simple way to achieve touchless environments in public restrooms. Available for push or pull mounting, this unit can be operated manually or activated by wall switches, or radio frequency devices.
