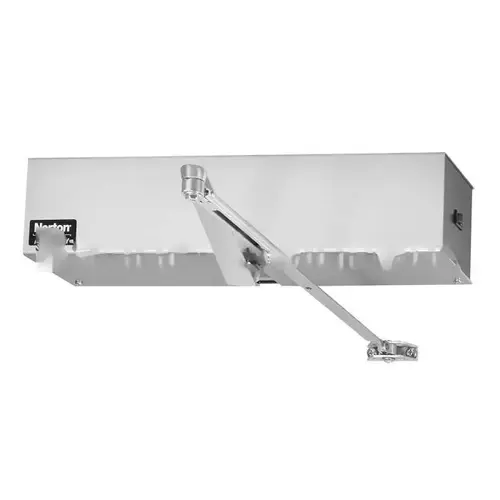

Norton 5630690 Push Side Double Lever Arm Low Energy Operator Dark Bronze Finish

5600 SeriesLow Energy Power Operator

The 5600 Series Operators offer functionality and control at an affordable price. Ideal for retrofit applications, the 5600 Series converts interior, non-fire rated doors for ADA compliance easily and affordably and provides a simple way to achieve touchless environments in public restrooms. Available for push or pull mounting, this unit can be operated manually or activated by wall switches, or radio frequency devices. Easy to install, set-up and adjust, the 5600 Series is perfect for ADA-compliant offices, classrooms and dorm rooms, and touch free applications like public restrooms, labs and examination rooms.

Features:

• Push or pull side mounting

• Non-handed

• Quiet operation

• Electrically controlled backcheck, sweep and latch

• Activation options: wall switches, radio frequency devices

• Ease of installation and set-up

• On/Off Switch

• Hold open options: 0-30 seconds
• (5 seconds minimum required for ADA and ANSI/BHMA A156.19)

• Onboard 24VDC (1.1A) power supply for accessories

• Door closer mode for manual usage

• Electronic motor dampening - provides feel of high performance, manual door closer

• Electric hardware and access control interface

Patents:

• Pending

Functions: Adjustable Hold Open:

• Amount of time a door will stay in the full open position after an activation

Executive Mode Feature:

• When door receives activation signal it opens and remains open until either a second signal is received or door is manually moved in closing direction

Obstruction Detection:

• Motor stops if door is obstructed during opening; door will rest against obstruction

On/Off Switch:

• Disables operator activation

Open Delay:

• Delays operator opening for locking hardware

Overload Safety Shut-Off:

• After 2 minutes of receiving a door activation signal, inverter times out and door closes
• Prevents motor/inverter damage

Push & Go:

• As the door is manually opened, the operator "senses" movement and opens door to the full-open position

Electrical Data:

• Power Input; 120 VAC, 60Hz

• Current Draw: 0.6A

• Relay Output: SPDT
• Normally open/normally closed (jumper)
• For electric strike function

Certifications:

• ANSI / BHMA A156.19 certified

• ETL certified; conforms to ANSI/UL standard 325 for automatic closing doors

• Comply with requirements for the Americans with Disabilities Act (A.D.A.)
