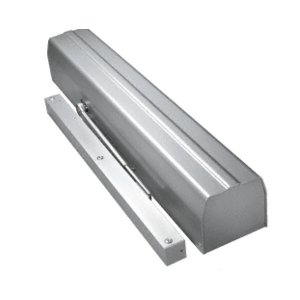

Norton®'s 5700 Series introduces a new generation of power door operators. The patented design of LEO® is based on ease and simplicity. LEO® installs in minutes rather than hours, and consists of three basic components: Inverter, motor, and Norton's 1601 Closer Body.
What separates LEO® from other operators is its ability to function as a standard door closer. When the door is opened manually, there is little resistance, and the drive train and motor are not engaged. The 1601 Closer, not the motor, controls the closing cycle. Since the door closer does not back-drive the motor during the closing cycle, there is no loss of closer efficiency.
In the event of a power outage, the door can be manually opened and will close via the door closer's spring force.
LEO® is listed with UL and ANSI/BHMA A156.19, and meets the requirements of A.D.A. A156.4. It is ideal for offices, retirement facilities, schools, churches, and any location where extra features are not required and noise may be a concern. LEO® can be activated via wall switch, radio frequency device or motion sensor, and is available for both push and pull side applications. Based on its dual functionality, ease of use and quiet operation, LEO® offers the customer a unique choice.
NOTE: This product is a low energy power operator intended for A.D.A. assist openings only. It is not intended to be used for applications requiring a full time automatic operator.
SPECIFICATIONS:Power Input: 120V AC, 60Hz
Current Draw: .6A
Relay Output: DPDT-N.O./N.C. (jumper)
External On/Off SwitchAdjustable Hydraulic BackcheckAdjustable Hold Open: 0 to 30 Seconds
Warranty: 2 Year Limited
Finish: Sprayed Combination of Waterborne Acrylic and Polyester Powder Coat
Dimensions: Body with Cover: 29" (737 mm) x 5-1/4" (133 mm)
Body Projection: 4-5/8" (117 mm)
Track Assembly: 23" (584 mm)
NOTE: Contact DK Hardware Sales for use on doors exceeding 250 lbs. (113 kg).
NOTE: Door Switches and Sensors are not included with 5700 Series Door Operators. These must be ordered separately.
Product Warning:This product is a low energy operator intended for ADA assist openings only. It is not intended to be used for full time automatic opener applications.
This operator can be wired to work with electric strikes or magnetic locks. The strikes or locks would need their own separate power supply.
.
