Norton 7900BF1LA Aluminum 7900 Series No Hold Open Left Hand Interior Door Closer
Item #: 7900BF1LA by Norton
In Stock $953.36 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Closer Body is Completely Concealed in Transom
- Concealed Arm and Slide Track in Door
- Best Suited for High Profile Applications
- A.D.A. Opening Forces to Conform With Barrier Code Requirements While Still Providing Door Control
- ANSI A156.4 – Grade 1
- UL Listed
Handing
Left Hand
Size
1 to 6
Brand
Norton
Finish
Aluminum
UL Listed
Yes
Door Height
96
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Custom Header Required
Yes
Recommended Door Type
Aluminum,Hollow Metal
Cover Plate Width (Inches)
2-1/8
Americans with Disabilities Act (ADA) Compliant
Yes
Adjustable Back Check
Yes
Maximum Door Width - Exterior
36 Inches
Slide Track Depth (Inches)
1-3/16
Slide Track Length (Inches)
24
Cover Plate Length (Inches)
16-7/16
Maximum Door Width - Interior
48 Inches
Body Height
3-3/4
Body Width
2-1/8
Material
Steel
Body Length
14
Cover Plate Width
2-1/8
Cover Plate Length
16-7/16
Slide Track Length
24
Slide Track Depth
1-3/16

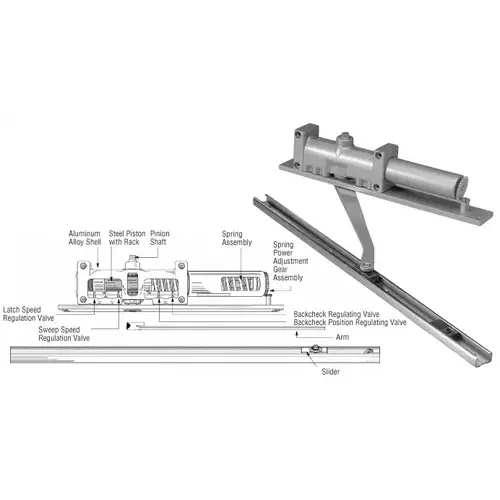

This Norton® 7900 Series Overhead Concealed Door Closer provides an aesthetically appealing way to close a door. In situations where a closer is needed but concealment in the frame header is required or desired, the Norton® 7900 Closer is the ideal solution for door control. Once installed, only the solid one-piece arm is visible when the door is open; therefore, this unit provides a high degree of vandal resistance. When the door is closed, the closer, arm and slide track are fully concealed.
Norton® 7900 Overhead Closers are best suited for high-profile applications, such as office buildings or conference centers. This heavy-duty, durable closer package includes a steel track, steel slider, polymer slider pads, and dress plates. The steel track and slider offer additional strength to the unit, while the polymer pads provide quiet operation and easy assembly. Standard features include rack and pinion operation, adjustable sweep and latch, plus adjustable back check cushioning and positioning.
PACKAGING INFORMATION:
All Norton® Series 7900 Closers are packed one to a box, with an arm and a slide track, one hex key for control valve adjustment (and hold open tension adjustment), one hex key for arm to track attachment, and one hex key for anchoring cushion stop in track. Installation instructions and both wood screws and metal screws for mounting are included. 10 Year Limited Warranty.
.
