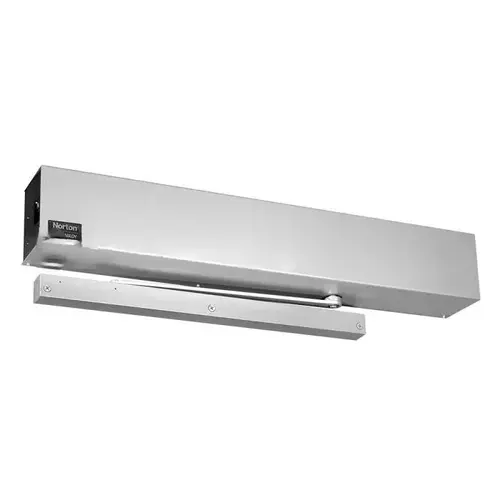

Norton 6011689Click To Copy ADA Low Energy Operator Pull Side, Wi-Fi Interface, Heavy Duty, Rigid Arm and Slide Track, 120 VAC Input, UL, 689/SP28 Aluminum Powder Coat Cover

6000 SeriesLow Energy Power Operator

The 6000 Series low energy operator is a heavy-duty unit designed for rigorous, high-use applications. Built-in intelligence enables the operator to safeguard users while providing better door control. Simple installation and adjustment features combined with the unit’s high level of versatility allows for seamless integration with a multitude of facilities and systems.

Functions: Adjustable Hold Open:

• Amount of time a door will stay in the full open position after an activation

Blow open for smoke ventilation:

• Door opens when signal is received from alarm system allowing air or smoke to flow through opening.
• Door will stay open until signal from alarm system is stopped

Infinite Hold Open:

• Door will hold open at set position until power is turned off

Obstruction Detection:

• Open: door closes if it hits an obstruction while opening
• Close: door reopens (once) if it hits an obstruction while closing. If it hits the obstruction again, the door will rest against the obstruction until it is removed

Open Delay:

• Delays operator opening for locking hardware

Overload Safety Shut-Off:

• After 3 minutes of receiving a door activation signal, inverter times out and door closes
• Prevents motor/inverter damage

Presence Detector Input:

• Input for external sensor to detect presence at door open or close position only

Push & Go:

• As the door is manually opened, the operator "senses" movement and opens door to the full-open position

Selector mode switch:

• Off - Disables signal inputs unless Blow Open is activated
• On - Activates signal inputs
• Hold Open - Activates the unit (unless blow closed is activated on 6300) to the hold open position

Two Selectable Output relay:

• Multi-function relay outputs

Vestibule Delay:

• When the push button is pressed, first door in vestibule will open. Second door will open once vestibule door delay has expired. Delay is adjustable.

Features:

• Push or pull side mounting

• Non-handed

• Modular design for one person install

• Full cover option on double/pair of doors

• 1.3A onboard power supply

• Activated by push button, hands-free, and RF devices

• Infinite hold open

• Maximum door size 4'0" x 8'0", 250 lbs

• Operates as a mechanical surface closer when power is off

• On board electronics collect usage and cycle count data to facilitate preventative maintenance/diagnostics

• 2 year limited warranty

Electrical Data:

• Power input 120 VAC, 60 Hz (+10%, -15%)

• Current draw 0.9A (single), 1.8A (double)

• Auxiliary output 24 VDC @ 1.3A

• SPDT relay output for controlling electric strikes or electric locks not to exceed 1 amp @ 30 VDC

Certifications:

• ANSI/BHMA A156.19 certified

• ETL tested to UL / cUL standards for automatic doors used on fire and smoke barrier doors and CSA C22.2 No. 247 for operators and systems of doors

• UL10C listed for positive pressure fire test

• Comply with requirements for the Americans with Disabilities Act (A.D.A)

• California State Fire Marshal Listing 3266-0944:0110

• Manufactured in an ISO 9001 and ISO 14001 facility
