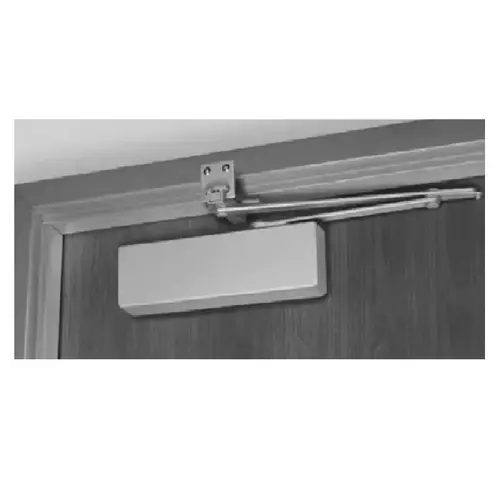

Norton UNIJ7500-689-3-1/4-REVEAL 7500 Series Surface Door Closer Aluminum Painted
Item #: UNIJ7500-689-3-1/4-REVEAL by Norton
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Aluminum Painted
Grade
ANSI/BHMA Grade 1
Spring Size
Adjustable 1-6
Function
Bi-Pack Non-Hold Open
Mount
Parallel Arm (Push Side)
Door Size
28" to 48"
Finish Description
Aluminum Painted
Reveal
3
Closer Cover
Plastic Cover
Product Type
Door Closer/Holder/Stop
Series
7500 Series
Application
Classrooms; Offices; Main Entrance Doors; Hospitals; High Use High Abuse Doors
Hand
Non-Handed
Handing
Non-Handed
Warranty
30 Year Limited Warranty
Mounting Type
Parallel Arm (Push Side)
Door Thickness
1-3/4 inch
Standards
Grade 1 - ANSI/BHMA A156.4
Closer Arm Type
Unitrol Arm
Closer Fluid Temperature Range
Extremely High to as Low as -40°F
Closer Fluid
NorGlide
Closer Piston Diameter
1-1/2 Inch
Closer Pinion Diameter
5/8 Inch
Function Family
Non Hold Open Door Closer
Mounting Hole Size
2-3/8" x 6-3/4"
Templating
Full Size
Fastener Type
Self Drilling Screws
Features
Backcheck Positioning Valve; All Standard Arm Applications Allow Doors To Swing 180°
ADA Compliant
YES
Finish Family
Aluminum
Product Material
Cast Aluminum
Minimum Hold-Open
85°
Manufacturer Parent
Assa Abloy
Closer Hold-Open
false
Maximum Hold-Open
110°
Sub-Series
UNIJ7500-689-3-1/4-REVEAL
Maximum Door Opening
180°
Product Overview
The 7500 Series, with optional Unitrol® Arm, is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities that demand reliability, such as government, healthcare and educational institutions.
- Tri-Style® packaging; tri-packed for regular, top jamb or parallel arm mounting
- Non-handed
- Rack-and-pinion design
- Cast aluminum body
- Adjustable spring sizes 1-6
- 2-1/8" (54mm) projection
- 1-1/2" (38mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- Staked valves
- Retrofit plates
- NorGlide® fluid
- Molded plastic cover
- All standard arm applications allow doors to swing 180°, conditions permitting
- Self-drilling screws
- Full-size template
- Application specific mounting: Regular (S), Top Jamb (JS) or Parallel (P) mount
- Heavy-duty arms: Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™ and Unitrol®
- Slide Tracks: push or pull side mounting
- Exceeds 25 million cycles
Optional Features
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- Backcheck positioning
- Enhanced backcheck. Specify EBC suffix
- Delayed action with pressure relief valve
- Corrosion resistant model (non-hold open only): specify 7500SS
- Metal cover: specify M suffix
- Lead lined metal cover: specify MLL suffix
