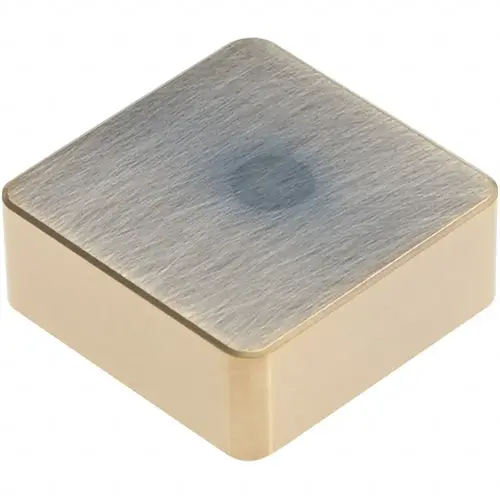

NTK 7901561-XCP10 Turning Insert: SNG433Z0825 ZC4, Ceramic - pack of 10
Item #: 7901561-XCP10 by NTK
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
8
Standards
ANSI
Included Angle
90degree
Insert Material
Ceramic
Series
SNG
Coating Process
PVD
Coating/Finish
TiN
Corner Radius (Decimal Inch)
0.0468
Manufacturers Catalog Number
7901561
Material Grade
Alumina TiC
Primary Workpiece Material
Cast Iron
Primary Workpiece Material Code
K
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5000in
Width (Inch)
1/2in
Coating Classification
PVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.5000
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Maximum Depth of Cut (Decimal Inch)
0.1667
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Cast Iron
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.5000
Corner Radius (Inch)
3/64
Insert Shape
Square
Clearance Code
N
Rake Angle
0
Full Radius
No
Insert Shape Code
S
Chip Breaker
Flat Top
Secondary Workpiece Material Code
K
Insert Style
SNG
Insert Size Code
433
Tolerance Code
G
Hole Diameter (Decimal Inch)
0.2030
Relief Angle
0
Inscribed Circle (Inch)
1/2
Multi-Use Application
Turning
Insert Length (Inch)
1/2
Manufacturer Grade
ZC4
Length Range (Decimal Inch)
0.5000 - 0.6000
Proprietary Coating Designation
TiN
Iso Code
SNGN 120412 Z02025
Product Overview
Turning Insert: SNG433Z0825 ZC4, Ceramic TiC Coated, 1/2" Inscribed Circle, 1/32" Corner Radius, 90 degree Square, Series SNG
