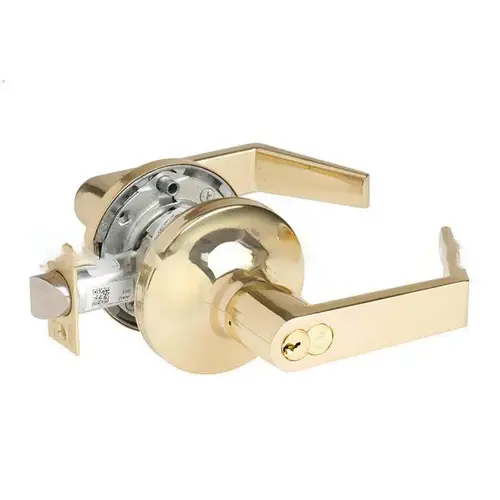

Yale Commercial AU5407LN1210605 5400LN Series Heavy Duty Lever lock, Bright Polished Brass

5400LN SeriesCylindrical Lever Locks

Designed for industrial and commercial use, Yale 5400LN Series heavy-duty cylindrical lockset offers rugged reliability and performance in a range of functions. With innovative features such as our Free Wheeling lever mechanism, wear-resistant chassis plates, heavy-duty lever return springs and thrubolting, this Grade 1 workhorse is favored for a variety of applications that require reliable access every day. Offering quality door hardware products from a brand you can trust, Yale Works for You℠. MicroShield® As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silverbased antimicrobial coating designed to inhibit the growth of bacteria. MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.

Benefits: Heavy-Duty:

• Rugged Grade 1 construction offers greater reliability and resists wear-and-tear

Secure:

• Innovative features protect against damage and vandalism

Versatile:

• Range of functions and options offer an ideal solution for a variety of commercial applications

Easy installation:

• Adjustable rose allows for easy adjustment on different door thicknesses

Strong & Reliable:

• ANSI/BHMA Grade 1 certification for long-life and durability

Features:

• Heavy duty construction features wear-resistant chassis plates, longer thread-locking thrubolts, lifetime warrantied lever return springs and stainless steel latchbolt for exceptional strength and durability

• Free Wheeling lever mechanism prevents vandalism and reduces maintenance

• Adjustable rose support plates

• Available in 3 lever designs, 24 functions (including electrified) and 12 standard finishes

• ANSI/BHMA Certified Grade 1

• ADA compliant for ease of accessibility

Specifications: Backset:

• 2-3/4" standard

Door Thickness:

• Adjustable for doors 1-3/4" to 2"

Handing:

• Non-handed, field reversible

Latchbolt:

• 2-3/4" backset, 1/2" throw

Strike:

• ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center

ANSI/BHMA:

• Certified Grade 1, ANSI/BHMA A156.2

UL/cUL:

• Listed for 3 hour fire doors

Windstorm:

• Certified, check local codes

Warranty:

• 7 years

Finishes: 605:

• Bright Brass, Clear Coated

606:

• Satin Brass, Clear Coated

609:

• Satin Brass, Blackened, Satin Relieved, Clear Coated

612:

• Satin Bronze, Clear Coated

613E:

• Dark Oxidized Satin Bronze - equivalent

616:

• Satin Bronze, Blackened, and Satin Relieved, Clear Coated

619:

• Satin Nickel Plated, Clear Coated

620:

• Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated

625:

• Bright Chrome Plated

626:

• Satin Chrome Plated*

693:

• Black Painted

BSP:

• Black Suede Powder Coat

WSP:

• White Suede Powder Coat

• *Finish available with MicroShield® antimicrobial coating. Add YMS suffix to order Microshield antimicrobial coating

• MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.
