- Use Monolithic Tempered Glass
- Assists with Shear Forces
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Holds Glass Panels in Position While Sealant Cures
- Solid Brass
1" (25.4 mm)
Width Per Leg
2-1/16" (52.4 mm)
Oil Rubbed Bronze
Glass To Glass
5/16 To 1/2
Glass To Glass Angle (Degrees)
Oil Rubbed Bronze

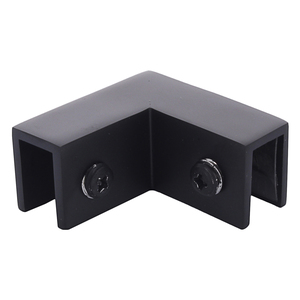

CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
P612** replacement screws
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
No Glass Fabrication Required
NOTE: Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales for more details.
These Clamps are not designed to take the place of Headers or a Support Bar.
