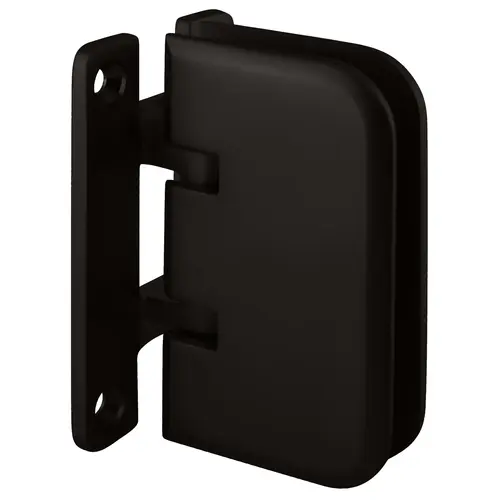

CRL EST0370RB Oil Rubbed Bronze Estate 037 Series Wall Mount 'H' Back Plate Hinge
Item #: EST0370RB by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Self-Centering Action
- Wall Mount
- Use Monolithic Tempered Glass
2 Lb (907g)
Oil Rubbed Bronze
Oil Rubbed Bronze
Maximum Door Width - 1/2 Glass - 3 Hinges (Inches)
5 Degree Pre-Set
Maximum Door Weight - 3 Hinges (Pounds)
Maximum Door Weight - 2 Hinges (Pounds)
Maximum Door Width - 3/8 Glass - 2 Hinges (Inches)
Maximum Door Width - 3/8 Glass - 3 Hinges (Inches)
Maximum Door Width - 1/2 Glass - 2 Hinges (Inches)
CRL Estate Hinges for 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass are a uniquely classic design combining mitered edges with curved corners. They are made of solid brass with stainless steel springs. Choose from the elegant Wall Mount Hinge or 90 degree, 135 degree, and 180 degree Glass-to-Glass styles. The self-centering action of the Estate Series Hinge allows the door to be maintained in any position, except when within 15 degree of the closed position, where they are tapered to assist in centering the door.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" of 34" (864 mm) and a maximum door width for 1/2" of 30" (762 mm).
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm)Tempered Safety Glass
Special Features: Classic design combines mitered edges with curved corners.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
