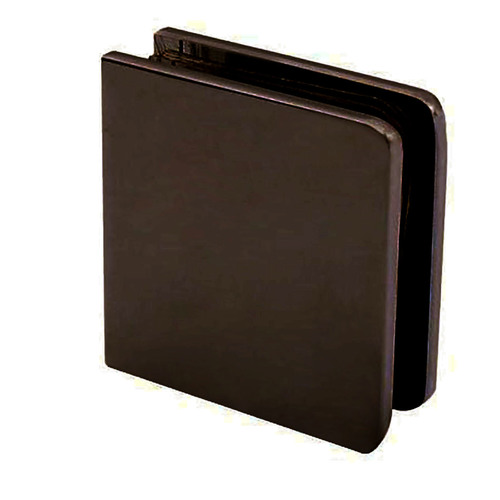

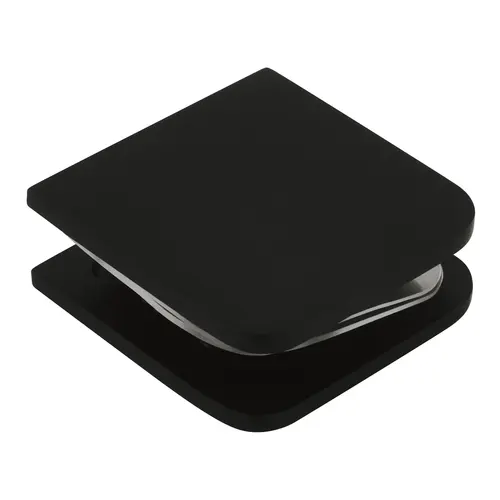

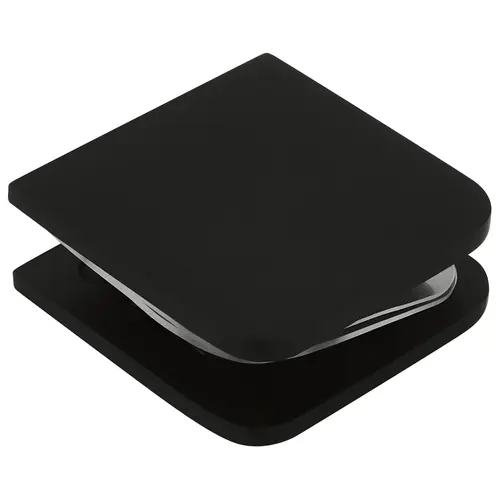

CRL UC770RB Oil Rubbed Bronze Traditional Style Fixed Panel U-Clamp
Item #: UC770RB by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Glass Fabrication Required to Accommodate Clamps
- Solid Brass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
1-3/4" (44.5 mm)
Oil Rubbed Bronze
5/16 To 1/2
Oil Rubbed Bronze
CRL Standard Fixed Panel U-Clamps mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is from 5/32" to 3/16" (4 to 5 mm). Clear silicone can be used to seal the gap and provide a clean, water resistant appearance.
Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting Screws (for Wall Clamps) and Clear Gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
