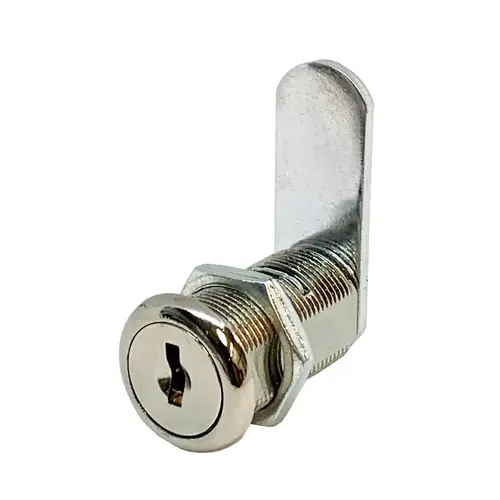

OLYMPUS LOCK 960-14A-C390A Olympus Disc Tumbler Cam Lock, 1-3/4" Cylinder Keyed Alike 390, Bright Nickel
Item #: 960-14A-C390A by Olympus Lock
Brand: OLYMPUS LOCK
See reviewsSee reviews
In Stock
$19.00
/eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 21 units available
Finish: Bright Nickel
Bright Nickel
Matte Black
Keying: Keyed Alike #390
Keyed Alike #346
Keyed Alike #390
Keyed Alike #413
Keyed Alike #420
Keyed Alike #452
Keyed Alike
Keyed Different
Keyed Different and Master Keyed
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Tumbler Type
Disc
Mount Type
Flush or Lipped/Overlay
Product Type
Cam Lock
Maximum Material Thickness
1-7/16"
Keying
Keyed Alike #390
Application
Doors and Drawers
Cylinder Length
1-3/4"
Finish
Bright Nickel
Color/Finish
Bright nickel
Swivel Range
90 Degree
Material Type
Zinc
Manufacturer Series
960
Key Number
390
Product Overview
Lock comes assembled
Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal
Shipped with cylinder and body assembled via patented retainer staple. Keys are not required for assembly
Spur washer with eyelet. When screwed into place, the spur washer prevents lock rotation and keeps fixing nut from loosening after installation
Revolutionary cylinder + cylinder extender allows cylinders to easily be swapped between different size cam lock bodies increasing inventory and keying flexibility
Custom keying typically ships direct from mfr. in 48-72 hours
90 degree cam turn
For drawers, right-hand or left-hand doors
Lipped/overlay construction (1-1/2" straight cam) or flush construction (1-1/8" extension, 11/32" offset cam)
For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below
Key removable in both locked and unlocked positions
Includes: (2) keys, (2) cams, eyelet spur washer, fixing nut, trim ring, cam screw with star washer and retainer staple
KA = All Keyed Alike to key number specified, master key will not work on these locks
KD = All Keyed Different, various lock numbers, master key will not work on these locks
KDMKD = All Keyed Different and master keyed, master key will work on these locks
Packing: 15 locks per box. Available any quantity.
