CRL One-Piece Self-Sealing Weatherstrip, EPDM Material, 1/8" Panel Thickness, 3/16" To 1/4" Glass Thickness, 50FT Roll Length
Item #: 10262 by CR Laurence
Brand: CRL
2
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from ethylene propylene diener monomer (EPDM) material for consistent performance in various environmental conditions.
- Designed with an overall width of 5/8" and an overall height of 3/4" to fit standard automotive and equipment glass channels.
- Compatible with glass thickness ranging from 3/16" to 1/4" and panel thickness of 1/8" for versatile application.
- Features a minimum radius of 2-1/4", allowing for installation in curved or contoured glass and panel configurations.
- Supplied in a 50' roll length, providing enough material for multiple or large-scale installation projects.
- Suitable for use in farm equipment, off-road construction machinery, and older truck glass and panel sealing applications.
- Designed as a one-piece self-sealing component to assist in creating a clean and weatherproof finished assembly.
Glass Thickness
.1875 to .250 in (4.8 to 6.35 mm)

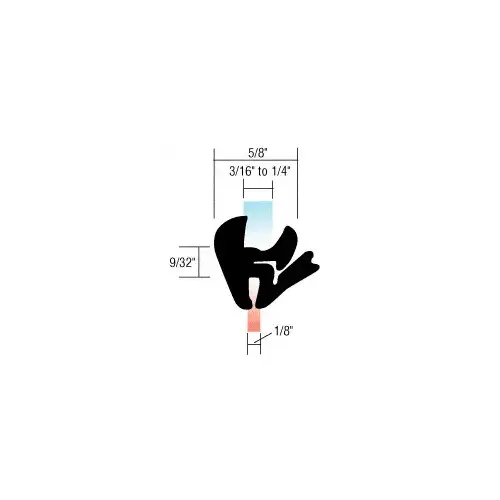

Overall Width x Height
.625 in (15.9 mm) x .75 in (19.1 mm)
Panel Thickness
.125 in (3.2 mm)
Type
One-Piece Self-Sealing Weatherstrip
Length
Roll : 50 Ft (15.2 m)
Body Panel Thickness
1/8
Glass Panel Thickness
3/16 To 1/4
Minimum Radius
2" (51 mm)
Width
5/8
Vehicle Model
Truck,Off Road Construction,Farm Equipment
Length (Feet)
50
Product Overview
CRL one-piece self-sealing weatherstrip 1/8" panel for 3/16" to 1/4" glass is made up of ethylene propylene diener monomer (epdm) material thus has great resistance to abrasives, tearing, solvents and harmful ultraviolet radiations. It offers long lasting durability with its anti-oxidizing black rubber. It is largely being used for working on farm equipment, off road equipment or older trucks. Guiding kit makes the installation process simple and trouble free. Built to survive in different weather conditions. Technical specifications: Glass thickness: .1875 to .250 in (4.8 to 6.35 mm) Minimum order: 1 roll Overall width x height: .625 in (15.9 mm) x .75 in (19.1 mm) Panel thickness: .125 in (3.2 mm) Minimum radius :2-1/4" (57.1 mm). Shipping weight: 8 lb (3.63kg) Subcategory: one-piece self sealing weatherstrip Type: one-piece self-sealing weatherstrip Length: roll: 50 ft (15.2 m) DS 06/28/2016
From Manufacturer
The One-Piece Self-Sealing Weatherstrip is designed for sealing glass panels in various applications, including farm equipment, off-road machinery, and older trucks. Constructed from ethylene propylene diener monomer (EPDM) material, this weatherstrip provides a consistent seal for glass and panel assemblies. The EPDM material offers resistance to abrasives, tearing, solvents, and harmful ultraviolet radiation, contributing to the longevity of the seal. It is compatible with a glass thickness ranging from 3/16" to 1/4" and a panel thickness of 1/8". The overall dimensions of the weatherstrip are 5/8" in width and 3/4" in height. This component features a minimum radius of 2-1/4" for installation flexibility in curved configurations. The weatherstrip is supplied in a 50 ft roll, providing sufficient material for various installation configurations. It is intended for use in creating a finished, weatherproof assembly in automotive and industrial settings.
