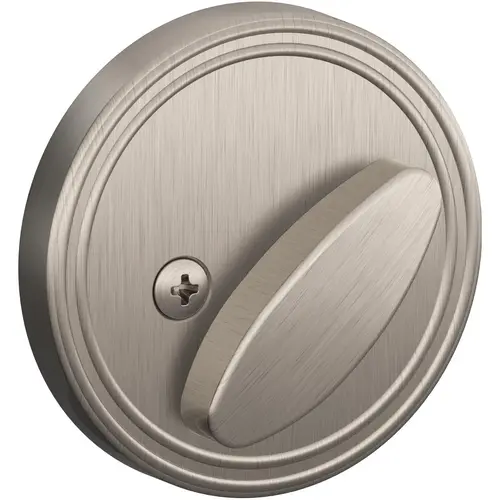

Schlage Residential JD80 619 JD80 619 16-068 10-267 1-Side Deadbolt - Satin Nickel
Item #: JD80 619 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156871896
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- One Sided Deadbolt - Unlocked by Inside Thumbturn
- Applications: Residential single and multi family doors
- Backset: Universal deadolts fit 2-3/8" or 2-3/4" backset
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Certifications: Commercial Standard Certification:ANSI/BHMA A156.36-2010 Grade 3 Residential Standard Certification:ANSI/BHMA A156.40-2015 Grade CCC in Security, Durability and Finish
- Door thickness range: Door thickness range: 1-3/8" to 1-3/4" standard
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Keying: 5-pin, C keyway with 2 keys
- UL Listed: Available in boxpack for JD60, JD80 and JD81
Finish
Satin Nickel
Function
Single Side
Series
JD Series
Handing
Reversible
Strike
Dual Radius Deadbolt and Full Lip
Backset
Dual Option-Round, Drive-In
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Grade
ANSI/BHMA Grade 3
Finish Description
Satin Nickel
Rose/Escutcheon Trim
Round Rose
Product Type
Auxiliary Lock
Projection
1.0000
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Height
2.8 Inches
Product Length
3.31 Inches
Included Components
Deadbolt; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
3.3100
Box Width
3.1100
Box Height
2.8000
Style
Round
Application
Residential
Warranty
Lifetime Mechanical and 5 yr Finish
ADA Compliant
No
Finish Family
Satin Nickel
Standards
ANSI/BHMA A156.36-2010
Function Family
Thumbturn Only Deadbolt
Features
Deadbolt Thrown or Retracted From Interior Side Only; Dual Option Latches
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
2.8x3.11x3.31
Sub-Series
RL_Deadbolts_Schlage_Residential_18
Collection
Deadbolts
Package Height
3"
Package Length
3.75"
Package Width
5"
Item Weight
1 lbs
Dimension
2-5/8" Diameter and 1" Projection
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-3/4"
Cross Bore Size
2-1/8" Bore
Finish code
619
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
No of inners
1
Keyed
Yes
Electronic
No
Door Handing
Non-Handed
Standard Strike
10-267: One Radius Deadbolt Full Lip Strike (10-102) & One Radius Deadbolt Strike (10-103)
Door Thickness Range
1-3/8" To 1-3/4"
Standard Latch
16-068: Triple Option (Round, Drive-in)
Product Overview
The Schlage J-Series One-Sided Deadbolt Thumbturn in Satin Nickel adds an extra layer of security to your exterior handleset or knob/lever. When finished in Satin Nickel, the deadbolt offers a tasteful and flattering accent to any home. Plus, it's been designed and tested with strength and durability in mind.
