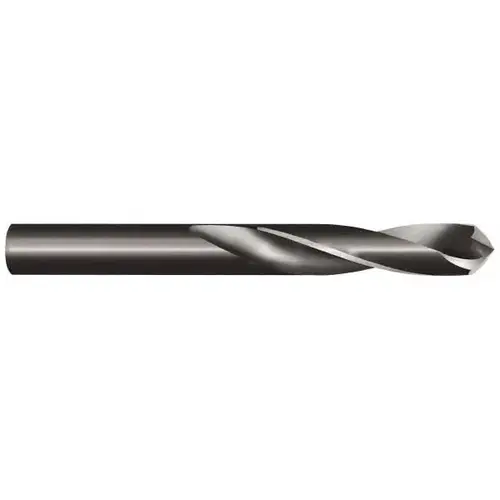

Onsrud 67-831 Jobber Length Drill Bit: 1/2" Dia, 118 degree, Solid Carbide Bright/Uncoated
Item #: 67-831 by Onsrud
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Web Thinning
Web-Thinned
Web Configuration
Parallel
Vendor Drop Ship
N
UNSPSC Code
23241634
Tool Performance
General Purpose
Shank Length (Inch)
1-3/4in
Shank Length (Decimal Inch)
1.7500in
Shank Diameter (Inch)
1/2in
Shank Diameter (Decimal Inch)
0.5000
Primary Workpiece Material Code
O
Primary Workpiece Material
Composite
Overall Length (Inch)
4-3/4in
Overall Length (Decimal Inch)
4.7500in
Number of Flats
0
Maximum Drilling Depth (Inch)
3
Maximum Drilling Depth (Decimal Inch)
3.0000
Flute Length (Inch)
3
Flute Length (Decimal Inch)
3.0000
Flute By Diameter Ratio
6xD
Drill Point Angle
118 degrees
Drill Bit Size Range (Decimal Inch)
0.5000 - 0.6500
Drill Bit Size (Inch)
1/2
Drill Bit Size (Decimal Inch)
0.5000
Drill Bit Grade
General Purpose
Double Margin
No
Coolant Through
No
Coating/Finish
Bright/Uncoated
Tool Application
Drilling
Spiral Type
Regular
Drill Bit Material
Solid Carbide
Point Type
8 Facet
Series
67-800
Cutting Direction
Right Hand
Number of Flutes
2
Shank Type
Straight-Cylindrical
Flute Type
Spiral
Product Overview
Jobber Length Drill Bit: 1/2" Dia, 118 degree, Solid Carbide Bright Coated, 4-3/4" OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 67-800
