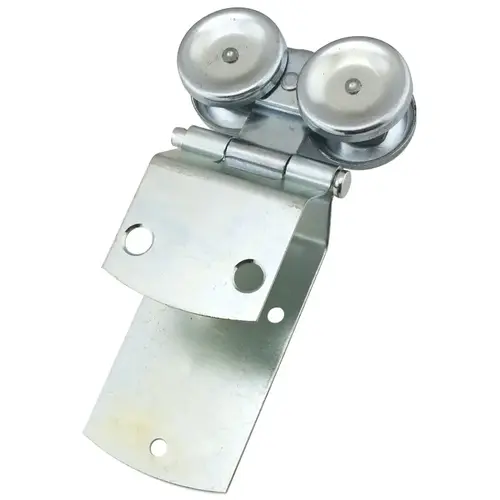

Onward 24651411XV Dual Axis Box Rail Hanger, 2-Roller, 450 lb, Zinc Plated, Single
Item #: 24651411XV by Onward Hardware
Brand: Onward
UPC #: 062703701905
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Number of rollers
2
Nomenclature
24651411XV HANGER BOX RAIL ZN
Dimensions
4-1/2 in W x 1-9/16 in H
Weight Capacity
450 lb
Bearing Type
Ball
Finish
Zinc
Overall Length
6.3 in
Application
Barn Door
Overall Height
0.385827 in
Load Capacity
Max. 450 lb
Door Thickness
2 in
Roller Type
Ball Bearing
Width
2.9 in
Adjustable
Yes
Product Type
Trolley, Track, Box Track
Number of Doors
1
Door Material
Wood
Door Movement
Straight Sliding
Manufacturing Material
Steel
Product Overview
The Onward 24651411XV Dual Axis Box Rail Hanger is designed for straight-sliding wood-frame barn, garage, and industrial doors. This listing includes one hanger assembly only. The two-roller description refers to the two ball-bearing rollers installed on the single hanger and does not indicate that two separate hangers are included.
The zinc-plated steel hanger includes an apron mounting hinge with opposing holes for bolt mounting. Vertical adjustment is made using the lock nut at the top of the hanger, while lateral adjustment is made through the slot in the apron. It is designed for 2-inch-thick wood doors and has a maximum load capacity of 450 lb.
A standard door requires two separately purchased hangers. For door panels wider than 16 ft., the manufacturer recommends using three hangers per panel.
