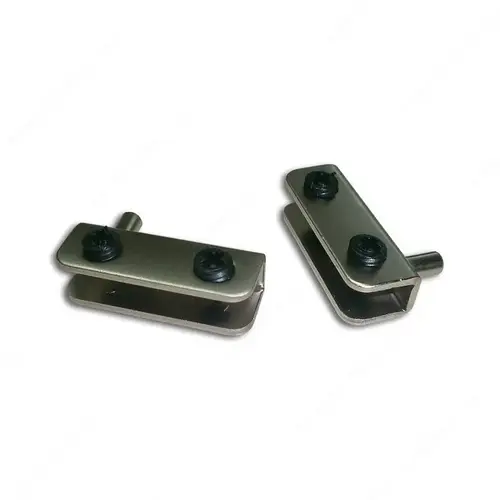

Onward 480612145 Pivot Hinge for Glass Door Recessed Within Furniture or Cabinet Pair Satin Chrome
Item #: 480612145 by Richelieu Hardware
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Height
19/32 in
Finish
Satin Chrome
Material
Steel
Length
1 5/8 in
Load Capacity
Max. 5.51 lb
Width
7/16 in
Dimensions to subtract from the height
3/8 in
Dimensions to subtract from the width
3/32 in
Height of Door to Respect
Max. 31 1/2 in
Thickness of Glass
5/32 to 3/16 in
Width of Door to Respect
Max. 19 5/8 in
Packaging Format
Pair
Screw/Nail
Included
Thumb Screws
Plastic
Product Overview
No drilling of glass
Important Information
Please refer to technical drawing for detailed measurements.
Note:
The dimensions indicated above are guidelines that provide satisfactory results in most cases. For more precise installations, your own calculations can be made when you have hinges and cabinets in hand.
Application
Glass Preparation:
- Glass Height: Opening Minus 3/8".
- Single Door Width: Opening Minus 3/32".
- Double Door Width: Opening Minus 5/64".
Press fit bushing.
Included Product(S)
Screws are included.
