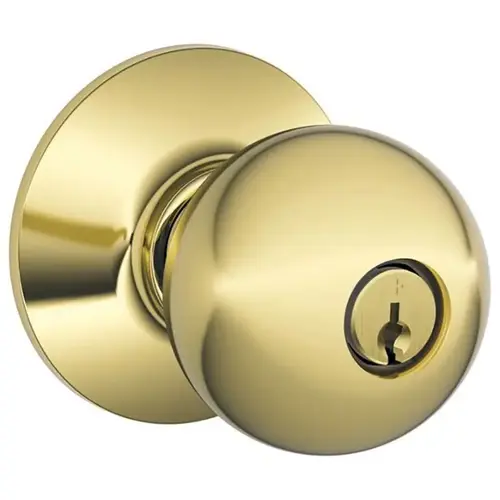

Schlage Residential F80 ORB 605 Orbit Knob Storeroom Lock C Keyway with 16211 Latch and 10063 Strike Bright Brass Finish
Item #: F80 ORB 605 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156238651
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Box Pack
- Storeroom Function - Outside Knob/Lever Fixed; Entry by Key Only; Inside Knob/Lever Always Unlocked
- Applications: Residential single- and multi-family doors
- Reversible Handing
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & Finish Warranty
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Finish
Bright Polished Brass
Function
80-Storeroom Lock
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Design
Orbit Knob
Strike
Full Lip 2-1/4 Inch, Radius Corner
Color Code
605/US3
Grade
ANSI/BHMA Grade 2
Keyway
Schlage C
Cylinder Type
Conventional Cylinder
Finish Description
Bright Polished Brass
Knob style
ORB-Orbit
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Keying Charges
Residential-Conventional
Box Length
8.1400
Box Width
4.3700
Box Height
3.0600
Warranty
Lifetime Limited Mechanical/Finish
Bolt Throw
1/2"
Latch Type
Dead
Product Height
2-3/4 Inch
Strike Type
Radius
Finish Family
Polished Brass
Included Components
Keyed Storeroom Knobs; Roses; Latch; Strike; Mounting Hardware
Product Material
Zinc
Standards
ANSI/BHMA A156.2-2017; ANSI/BHMA A156.39-2015; UL Listed; cUL
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Storeroom
Product Projection
2-7/8 Inch
Features
Outside Knob/Lever Fixed, Entrance by Key only; Inside Knob/Lever Always Unlocked
Door Thickness
1-3/8" to 1-3/4"
Manufacturer Parent
Allegion
Box Dimensions (L x W x H)
3.06x4.37x8.14"
Knob Style Family
Ball Knob
Sub-Series
F80-ORB
Dimension
2-1/8" Knob and 2-7/8" Projection with 2-3/4" Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Plymouth Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
605
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Orbit Knob
No of inners
1
No Of Pins
5 Pin Cylinder
ANSI/BHMA Standards
F81
Keyed
Yes
Handle Type
Knob
Keying
None (Select for Less Cylinder Options)
Handle Design
Orbit Knob
Electronic
No
Door Handing
Non-Handed
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Knob
Orbit Knob
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-086: Dead Latch, Dual Option (Round, Drive-in)
Projection
2-7/8"
Product Overview
F SeriesLever Locks
The Schlage F-Series levers offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of levers in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last.
Available Functions: F10/F75 – Hall & Closet*:- Both knobs/levers always unlocked
- Push-button locking
- Can be opened from outside with small circular tool
- Turning inside knob/lever releases button
- Non-turning trim for one side of door
- Used for door pull or as matching inactive trim
- Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily
- Locked by inserting key and rotating cylinder from outside, or manually rotating interior turn-button after exit
- Outside knob/lever fixed. Entrance by key only .
- Inside knob/lever always unlocked
- *Non-keyed Locks
- **Keyed Locks
- Dual Option (Round, Drive-in) Standard
- Square Corner
- Triple Option
- (Round, Square, Drive-in)
- UL Listed Square Corner with Firecup
- UL Listed Round Corner with Firecup
- 5" Backset, Square Corner
- Dual Option (Round, Drive-in) Standard
- Square Corner
- Triple Option
- (Round, Square, Drive-in)
- UL Listed Square Cornerwith Firecup
- UL Listed Round Corner with Firecup
- 5" Backset, Square Corner
- Round Corner Full Lip Standard
- Square Corner T Strike
- Square Corner Full Lip
- Circular - Adjustable
- Dual Strikes
- (Round & Square Full Lip)
- ANSI Square Corner
- ANSI/BHMA A156 .2-2017 Commercial Grade 2
- ANSI/BHMA A156 .39-2015 Residential Grade AAA
- Available UL Listed for 3-hour fire door
- 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housingdiameter, 1/2" throw,circular drive-in included, universal latch
- 1 5/8" x 2 1/4" radius corner, full lip, no box
- Dual backset latches, fits either 2 3/8" or 2 3/4" backsets
- 5-Pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two per lock, 5-pin, C section
- Locks are furnished with standard features unless otherwise specified. Toorder locks with non-standard features specify non-standard feature desired.
- Lifetime Bright Brass
- Bright Brass (US3)
- Satin Brass
- Antique Brass (US5)
- Oil-Rubbed Bronze (US10B)
- Polished Nickel
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Distressed Nickel
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Aged Bronze
- Non-standard finishes are not available.
- (ACC)
- (AVA)
- (VLA)
- (BIR)
- (BRW)
- (CHP)
- (ELA)
- (FLA)
- (JAZ)
- (LAT)
- (MNH)
- (MER)
- (NBK)
- (SAC)
