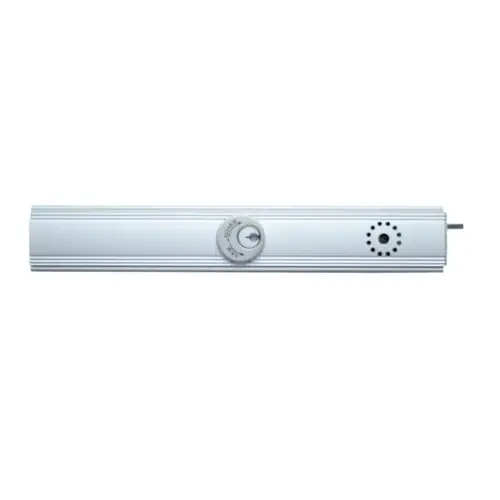

Orca Hardware OEDALARM-36 OED1000/4000 Series Alarm Kit Satin Stainless Steel
Item #: OEDALARM-36 by Orca Hardware
Brand: Orca Hardware
UPC #: 706612975216
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Finish
Satin Stainless Steel
Finish Description
Satin Stainless Steel
Product Type
Exit Device Trim
Series
OED Series
For Use With
For Installation on 4000 Series 36" Devices
Application
Commercial
Function
Alarm Kit
Door Thickness
1-3/8" to 1-3/4"
ADA Compliant
No
Finish Family
Stainless Steel
Product Size
36 Inch
Features
Alarm Unit has an Internal Horn; When Push Rail is Depressed, the Horn Sounds; Key Switch to Turn off Alarm is Standard 1-1/4" Cylinder with C-Keyway; Supplied with “Emergency Exit Only Alarm Will Sound" Decal
Manufacturer Parent
Orca Hardware
Sub-Series
OEDALARM-36
Grade
Grade 1
Door Thickness Range
1-3/8" To 1-3/4"
Size
36"
Product Overview
EXIT DEVICES FEATURES:
For use in institutions, schools, universities, commercial buildings
LBR No Bottom Strike. Free access for wheel chairs, stretcher and carts.
Standard door thickness 1-3/4"
For all doors up to 36" x 84" or 48 x 96"
Minimum stile 3-1/2" for double door applications
Material: Cap and rail are made of brass or stainless steel or steel
161 ANSI cutout
Mounting: Standard Thru-bolts
Non Handed
Latch bolt & spring: Stainless Steel
Auxilliary spring latch (fire bolt) is installed in lower edge of door , when exposed fire bolt releases keeping the door closed and regulated.
Available with outside trims,
EXIT DEVICES SPECIFICATIONS:
All exit device shall be of touch bar design with smooth operation & be operative over 2/3 of the door s clear opening width
All exit devices must be listed under Panic Hardware" in the Accident Equipment List of Underwriter s Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL 10C, UBC7-2-1997 codes.
All exit devices shall be of chassis mounted unit construction.
CODE COMPLIANCE:
ANSI A165.3, Grade 1
UL and ULC listed. LBR series for fire exit hardware for all types of 8 x 8 double doors including double egress for up to 3 hours metal. 1-1/2 hour wood doors fire labeled installations. Conforms to standard UL 10C, UBC 7-2-1997 codes
