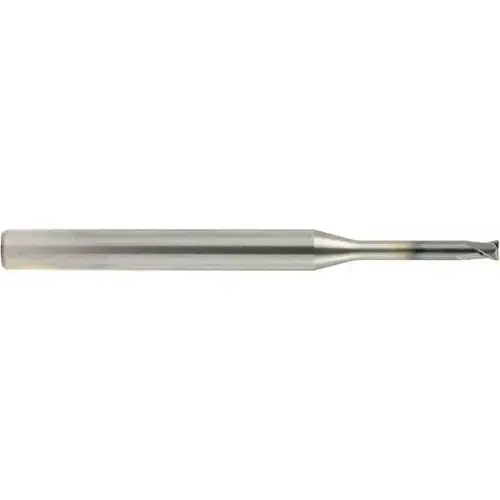

OSG 3100803 Corner Radius End Mill: 0.8 mm Dia, 0.65 mm LOC, 0.20 mm Radius, 2 Flute, Solid Carbide WXS
Item #: 3100803 by OSG
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Corner Radius (mm)
0.20
Corner Radius Tolerance
5 to -5 um
Neck Diameter (mm)
0.76
Mill Diameter (mm)
0.80
Mill Diameter Tolerance
0.00/-0.01 mm
Reach Length (mm)
4.00
Length of Cut (mm)
0.65
Variable Index
No
Single Or Double End
Single
Neck Diameter (Decimal Inch)
0.7600
Mill Diameter (Decimal Inch)
0.0315
Material Removal Type
Roughing
Helix Style
Medium
Flute Direction
Right Hand
Extended Reach
Yes
End Mill Material
Solid Carbide
Coating Classification
PVD
Centercutting
Yes
Vendor Drop Ship
N
UNSPSC Code
27112803
Shank Diameter (mm)
4.00
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Length Of Cut (Decimal Inch - 4 Decimals)
0.0256
Corner Radius (Decimal Inch)
0.0079
Coolant Through
No
Coating/Finish
WXS
Variable Helix
No
Series
4592
Cutting Direction
Right Hand
Length Type
Stub
Chipbreaker
No
Pitch
Coarse
Number of Flutes
2
Overall Length (mm)
50.00
End Type
Corner Radius
Shank Type
Straight-Cylindrical
Material Application
Steel
Flute Type
Spiral
For Use With
Toolholders
Product Overview
Corner Radius End Mill: 0.8 mm Dia, 0.65 mm LOC, 0.20 mm Radius, 2 Flute, Solid Carbide 50.00 mm OAL, 4.00 mm Shank Dia, 30 deg Helix, WXS Coated, Single End, Centercutting, Series 4592
